157
(5) The event that has been set in the [Event] combo box of the [Trace Events] group box on the [General] page
of the [Trace Acquisition] dialog box is displayed.

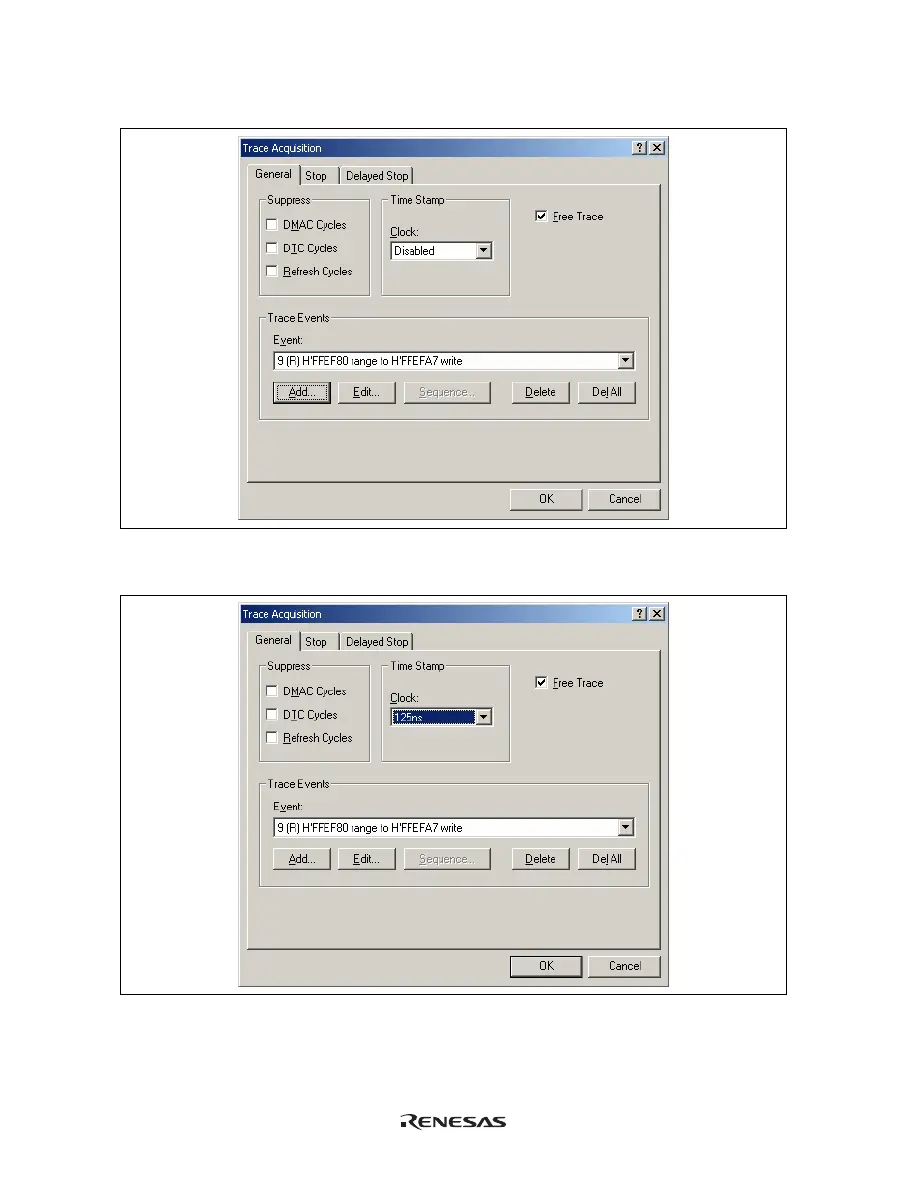

Figure 6.50 [Trace Acquisition] Dialog Box (Adding an Event)
(6) To enable time stamping, select 125ns from the [Clock] combo box of the [Time Stamp] group box.
Figure 6.51 [Trace Acquisition] Dialog Box (Time Stamping is Available)
