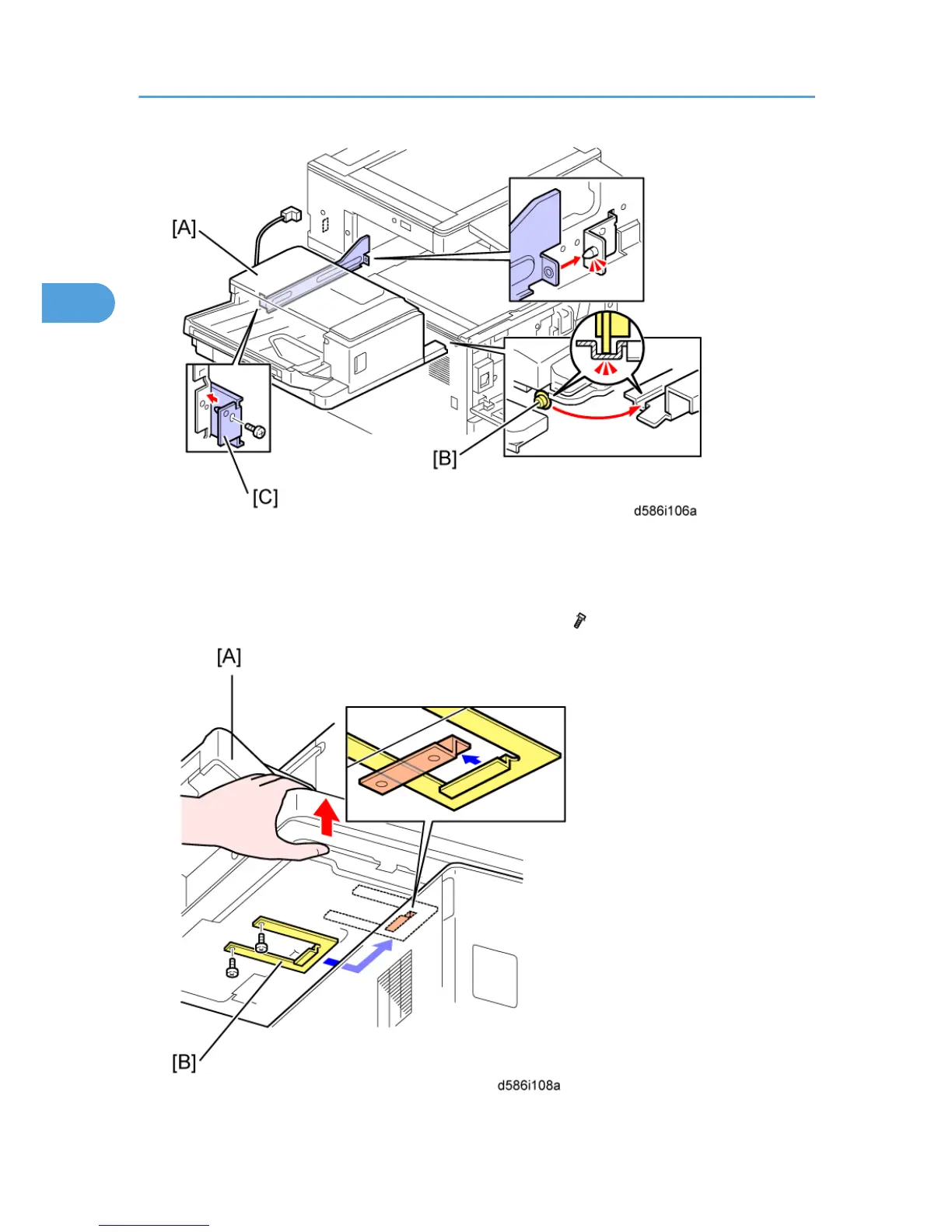

20. Install the internal finisher [A].
• Align the wheel [B] at the front of the internal finisher with the groove on the guide rail when
installing the internal finisher
21. Insert the rear rail [C] into the left frame of the main machine ( x 1: M4x6).
