• At the rear of the machine, it must face the rear.

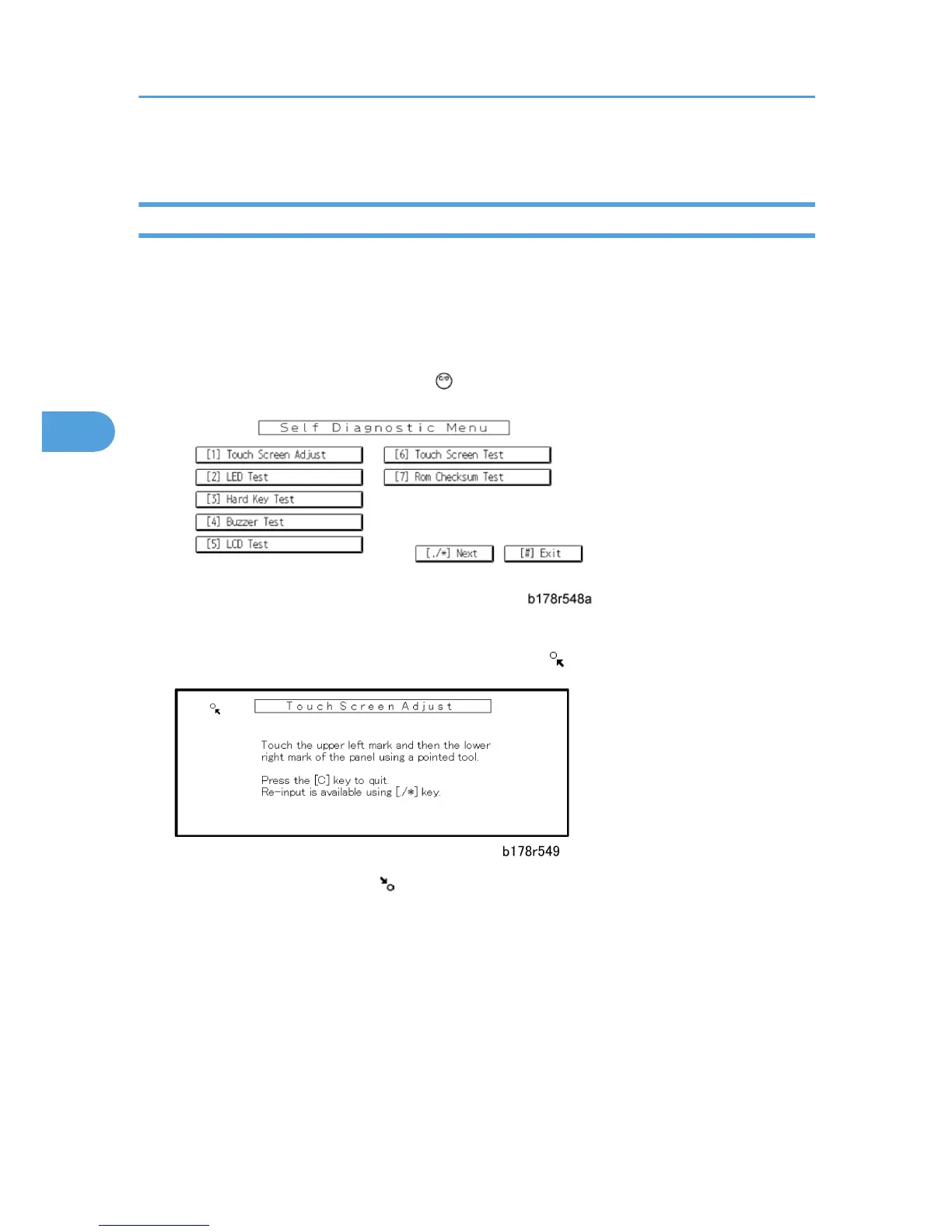

Touch Panel Position Adjustment
The touch panel must be recalibrated if it is not functioning correctly or after replacing these items:
• Operation panel
• Controller board
Do not use items [2] to [9] on the Self-Diagnostic Menu. These items are for design use only.
1.
Press [Clear], press [1] [9] [9] [3], press
5 times to open the Self-Diagnostics menu.
2. On the touch screen press Touch Screen Adjust (or press [1]).
3. Use a pointed (not sharp) tool to press the upper left mark .
4. Press the lower right mark when shows.
5. Touch a few spots on the touch panel to make sure that the marker + shows exactly where the
screen is touched.
6. Press Cancel. Then start from Step 2 again if the + mark does not show where the screen is
touched.
7.
Press [#] OK on the screen (or press [#]) when you are finished.
8. Touch [#] Exit on the screen to close the Self-Diagnostic menu. Save the calibration settings.
4. Replacement and Adjustment
204
