Three Digits SP Setting (SP4-954-005) 1
st
Three Digits SP Setting (SP4-954-005)
045 8 202 17
046 7 203 16
Scanner Motor
1. Remove the upper rear cover. ( p.181 "Upper Rear Cover")

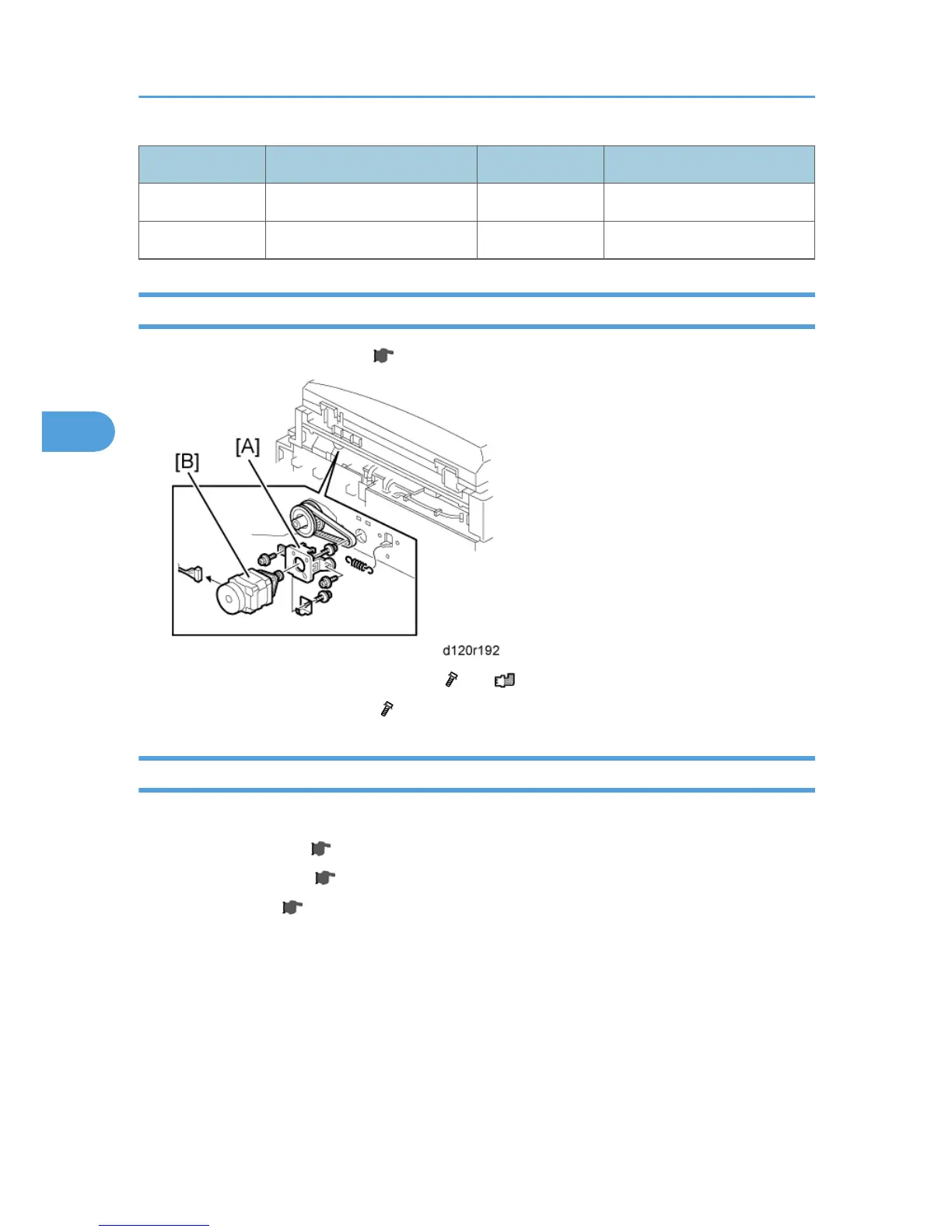

2. Remove the scanner motor assembly [A] ( x 2, x 1, spring x 1).
3. Replace the scanner motor [B] ( x 2)
Lens Block Unit
1. Remove:
• Exposure glass ( p.187 "Exposure Glass")
• SBU right cover ( p.187 "Original Length Sensors")
• SBU cover ( p.187 "Original Length Sensors")
4. Replacement and Adjustment
194
4
