10. The operation panel goes off and the main power on key flashes in red at 0.5 s intervals when the
data is downloading. The same key starts flashing in green at 1 s intervals when the update is
finished.
11. Switch the copier main power switch off and remove the SD card. Then switch the copier on.
Update Procedure for App2Me Provider
Follow this procedure to update App2Me if a new version is available.
1. Push the [User/Tools] key on the operation panel.
2. If an administrator setting is registered for the machine, Step 3 and Step 4 are required. Otherwise,
skip to step 5.
3.
Push [Login/Logout] on the operation panel.
4. Login with the administrator user name and password.
5. Touch "Extended Feature Settings" twice on the LCD.
6. Touch each of the applications until the status changes to "Stop".
7. Turn off the main power switch, and then remove the SD Card which contains Java-VM.
8. Prepare the newer App2Me Provider zip file from the Firmware Download Center, and then unzip
the zip file. (The folder name is "337051920".)

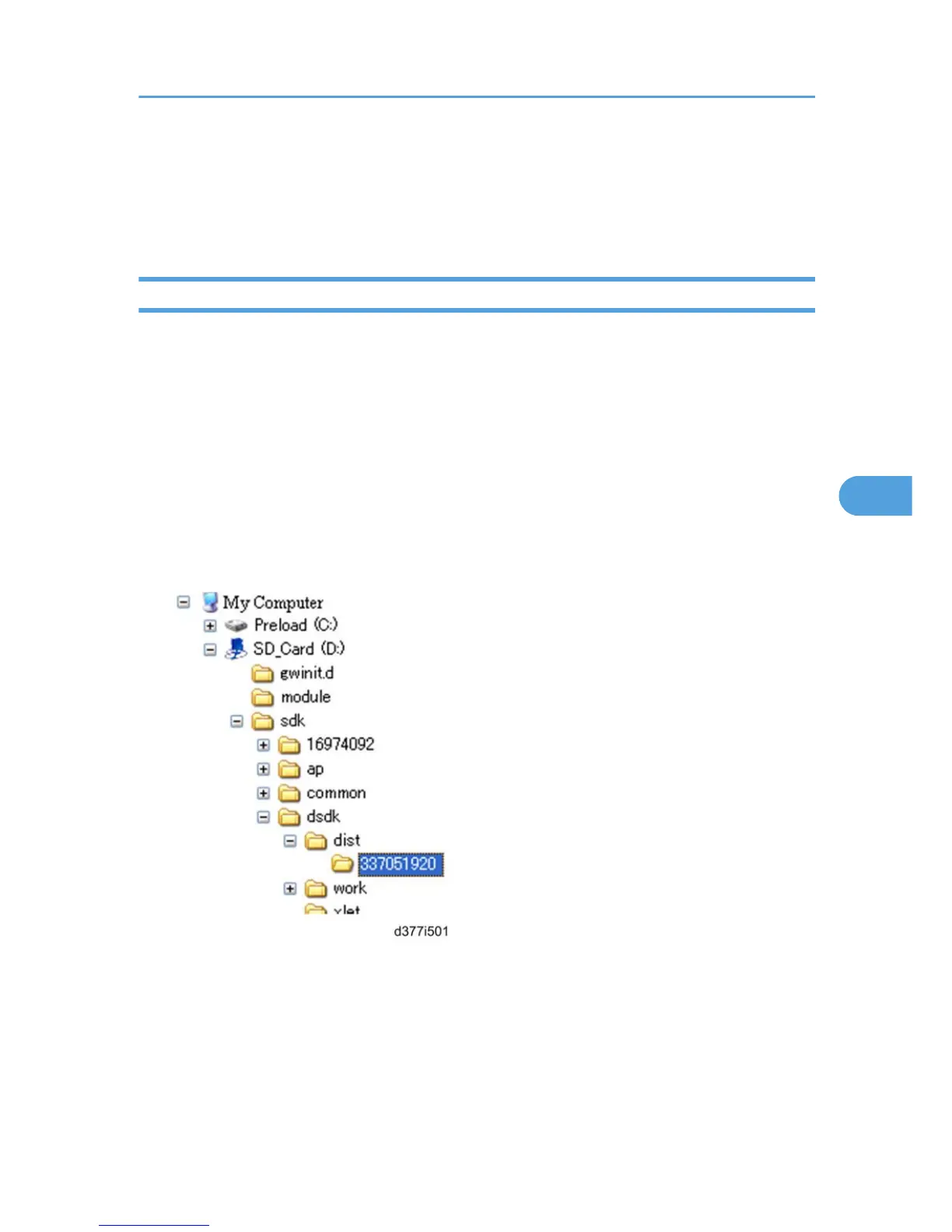

9. Copy the App2Me Provider folder into the specified path for the SD Card which contains Java-VM.
The path is:
"SD_Card Drive\ sdk\dsdk\dist\337051920"
10. Turn the SD card label face to the front of the machine, and then push it slowly into Slot 2 (lower
slot) until you hear a click.
Firmware Update
291
