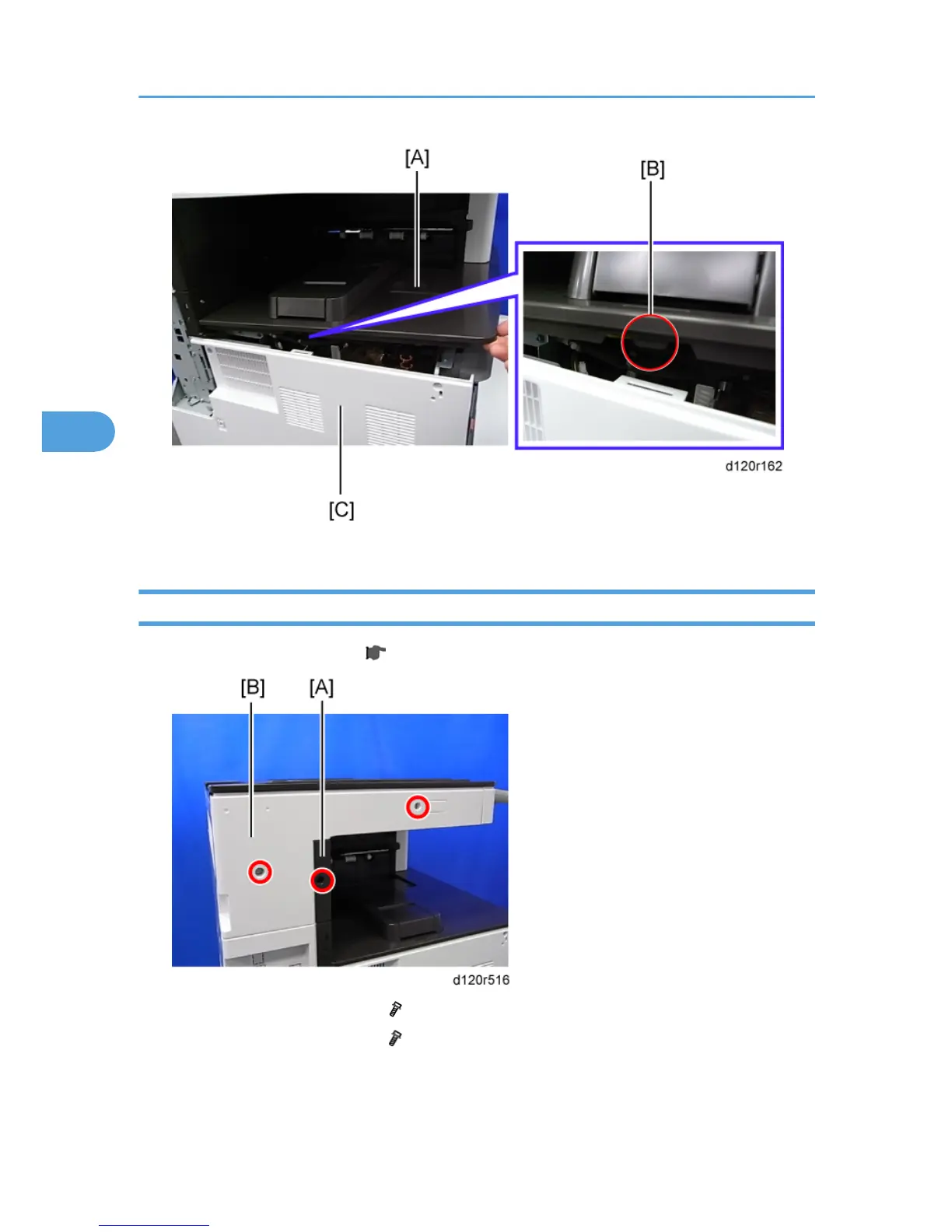

3. Lift up the output tray [A] by disconnecting the tab [B], and then remove the left cover [C].
Upper Left Cover
1. Remove the controller cover. ( p.179 "Controller Cover")
2. Remove the left frame cover [A] ( x1).
3. Remove the upper left cover [B] ( x 2).
4. Replacement and Adjustment
180
4
