Copy Data Security Unit Type F (B829)

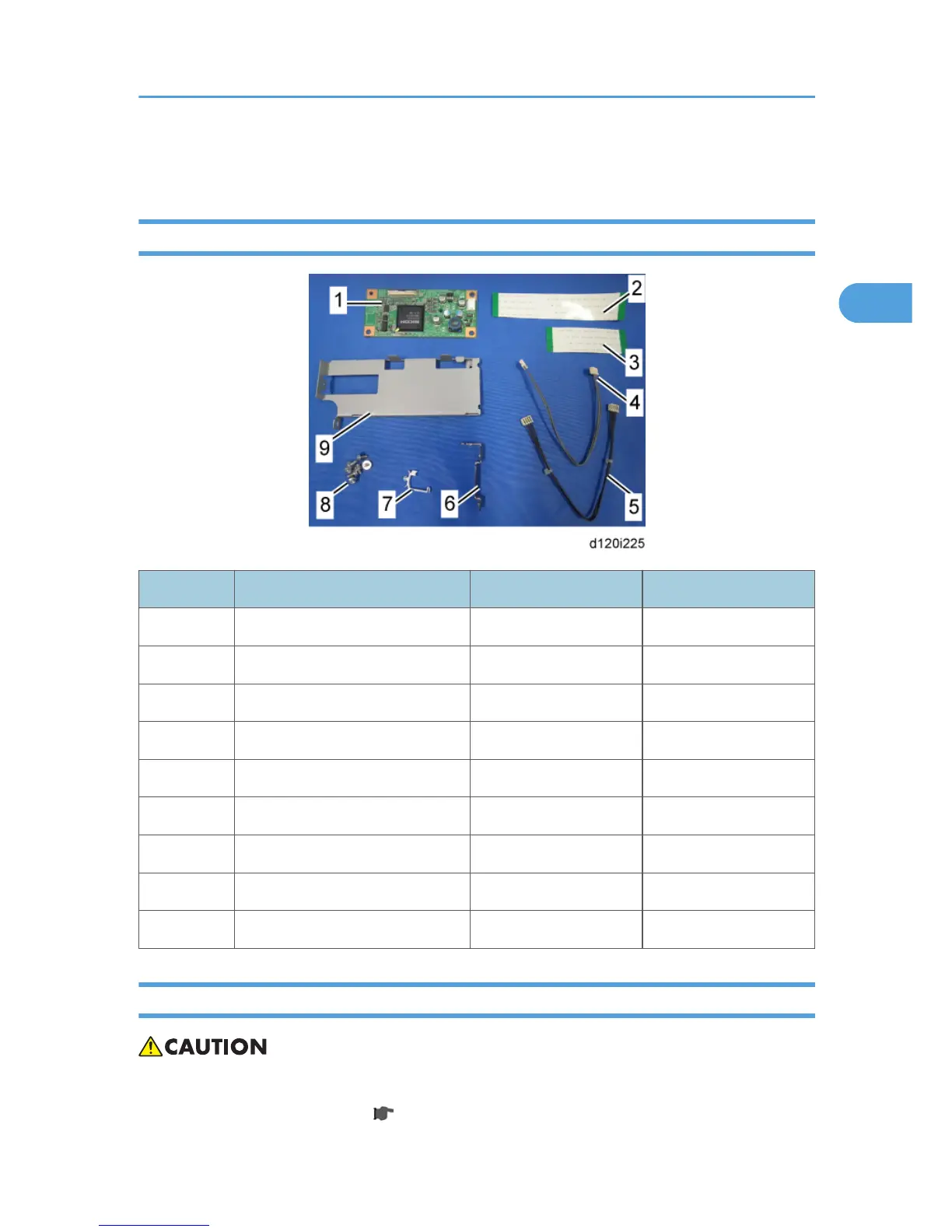

Component Check
No. Description Q’ty For this model
1 ICIB-3 1 Yes
2 Flexible cable: Long 1 Not used
3 Flexible cable: Short 1 Not used
4 Harness 1 Not used
5 Harness with bands 1 Not used
6 Small Bracket 1 Yes
7 Saddle Clamp 1 Not used
8 Screws: M3x6 6 Yes
9 Bracket 1 Not used
Installation
• Unplug the main machine power cord before you do the following procedure.
1. Remove the upper rear cover. ( p.181 "Upper Rear Cover")
