Paper Feed
• Turn off the main power switch and disconnect the power cord before you start any of the
procedures in this section.

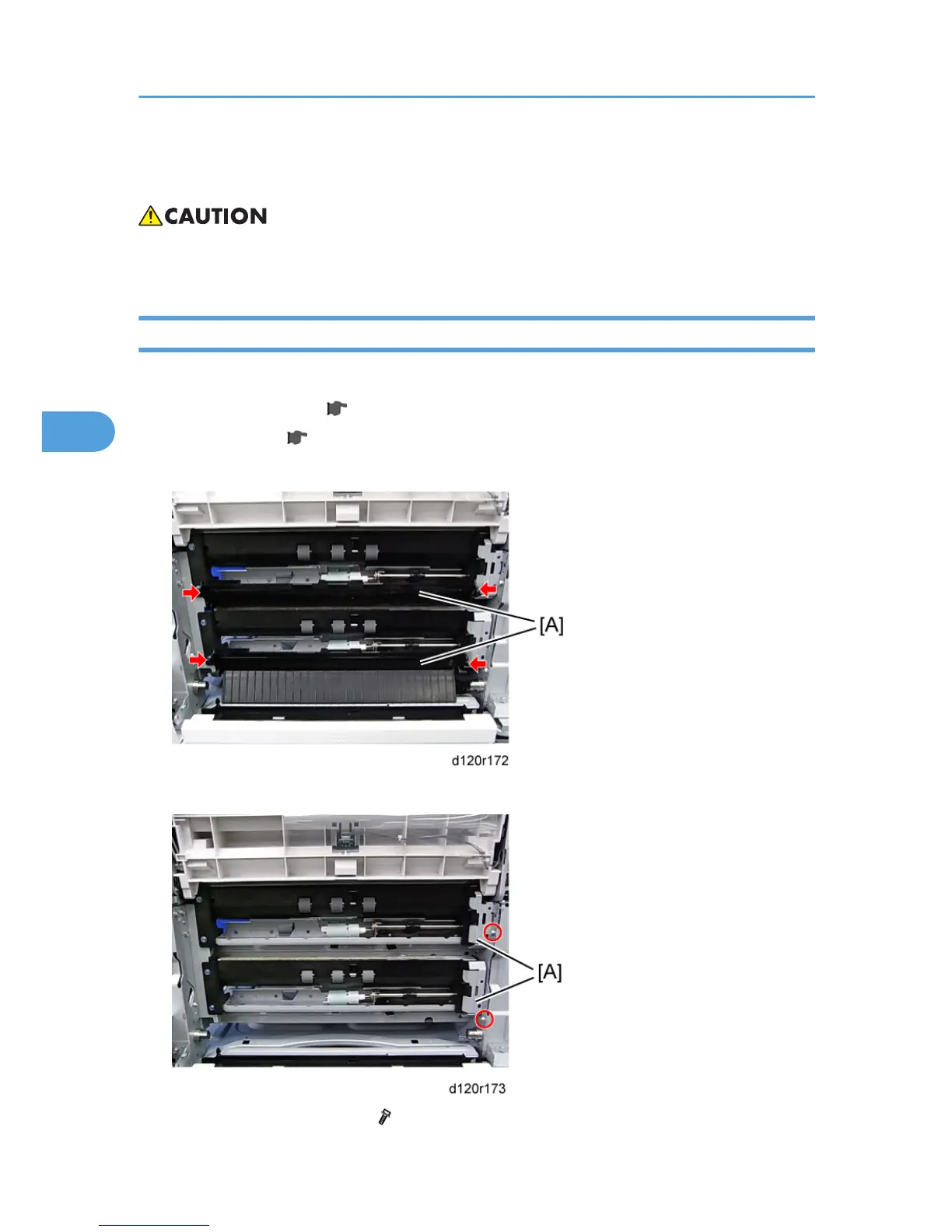

Paper Feed Unit
1. Remove:
• Paper feed clutch ( p.238 "Paper Feed Clutch")
• Duplex unit ( p.245 "Duplex Unit")
2. Pull out the 1st and 2nd paper trays.
3. Remove the paper guide plate [A] (tab x 2 each)
4. Remove the harness cover [A] ( x 1 each).
4. Replacement and Adjustment
