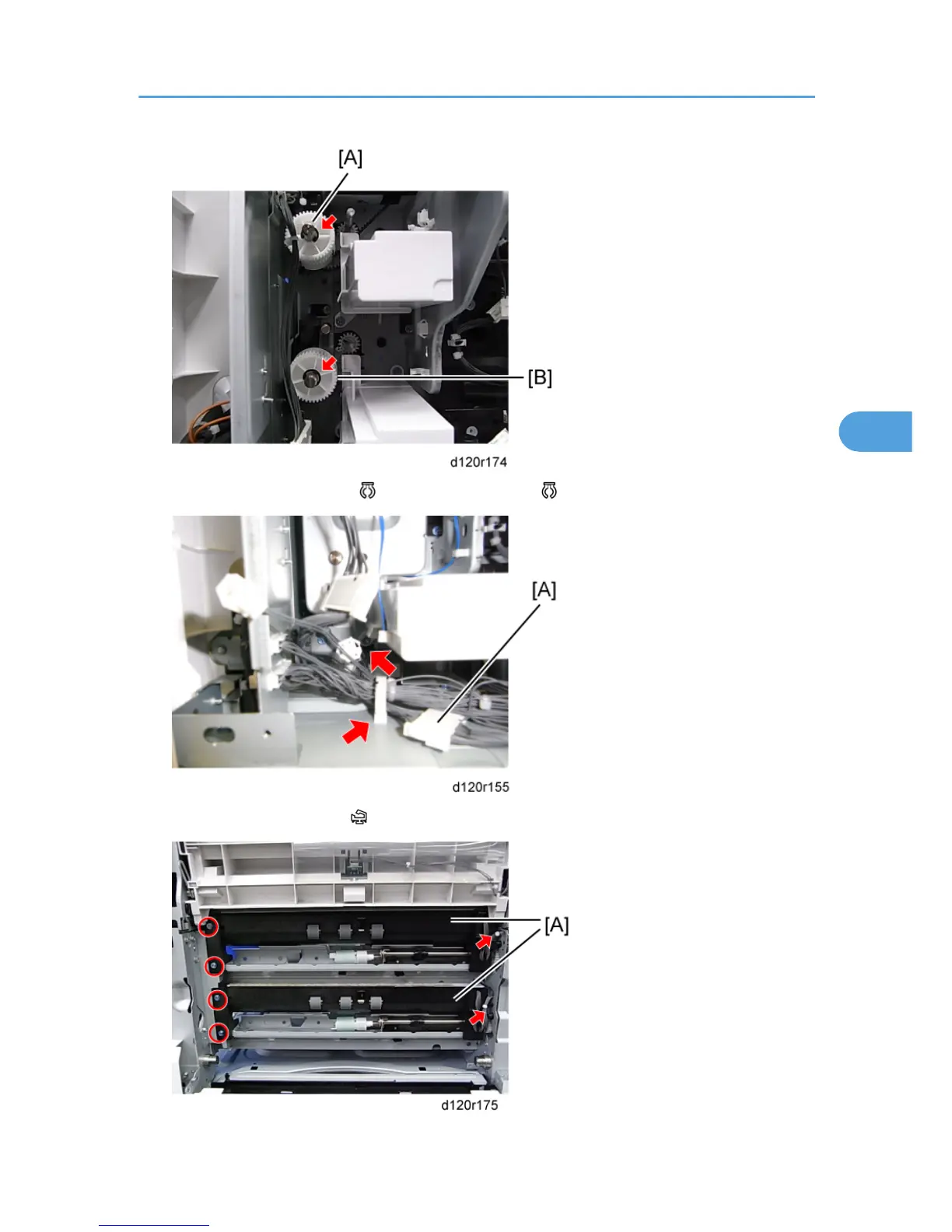

5. Remove the upper gear [A] ( x1) and lower gear [B] ( x1).
6. Remove the connector [A] ( x2).
Paper Feed
233
4
