Ricoh OR-C1 User Manual

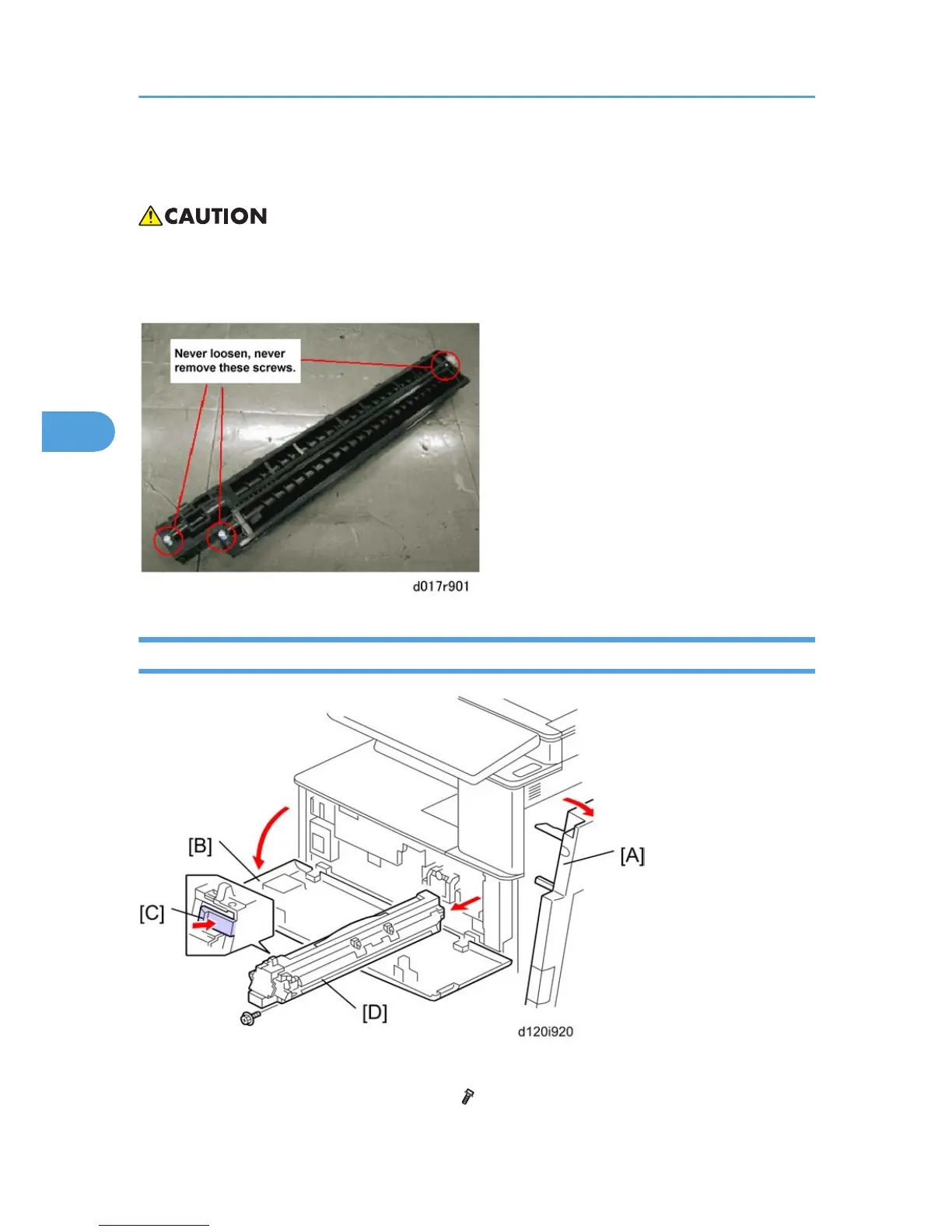

Photoconductor Unit (PCU)
• Turn off the main power switch and disconnect the power cord before you start any of the
procedures in this section. To prevent toner leakage, never loosen or remove the screws shown in
the illustration below.
PCU Removal
1. Open the right cover [A] and front cover [B].
2. Push the latch [C] and replace the PCU [D] ( x 1).
4. Replacement and Adjustment
210
4
