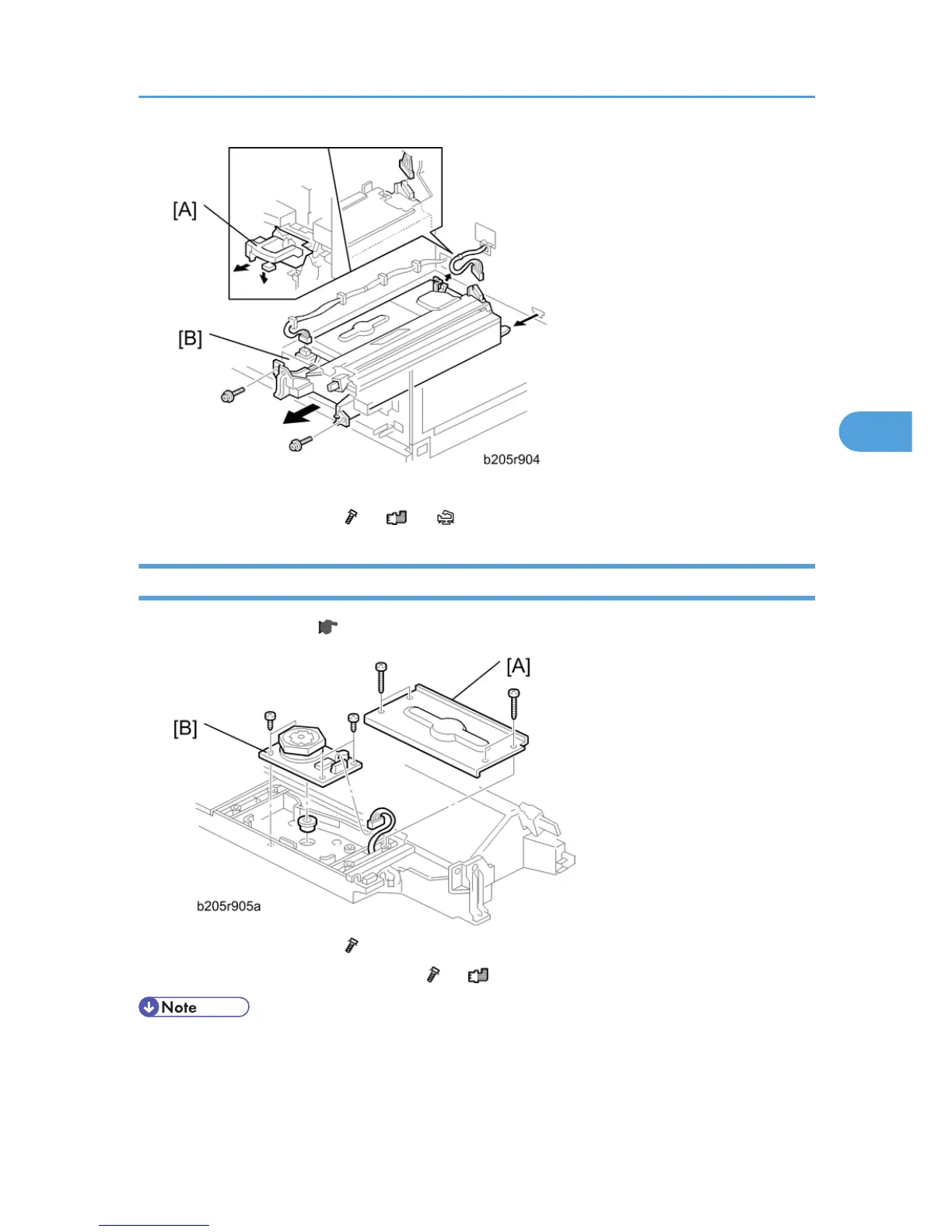

7. Remove the toner supply unit [A].
8. Remove the laser unit [B] ( x2, x2, x1).
Polygon Mirror Motor
1. Remove the laser unit ( p.205 "Laser Unit").
2. Remove the heat sink [A] ( x4).
3. Replace the polygon mirror motor [B] ( x4, x1).
• When you install the new polygon mirror motor, do not touch the surface of the mirror with bare
hands.
