Ricoh OR-C1 User Manual

• Bridge unit
• Optional shift tray

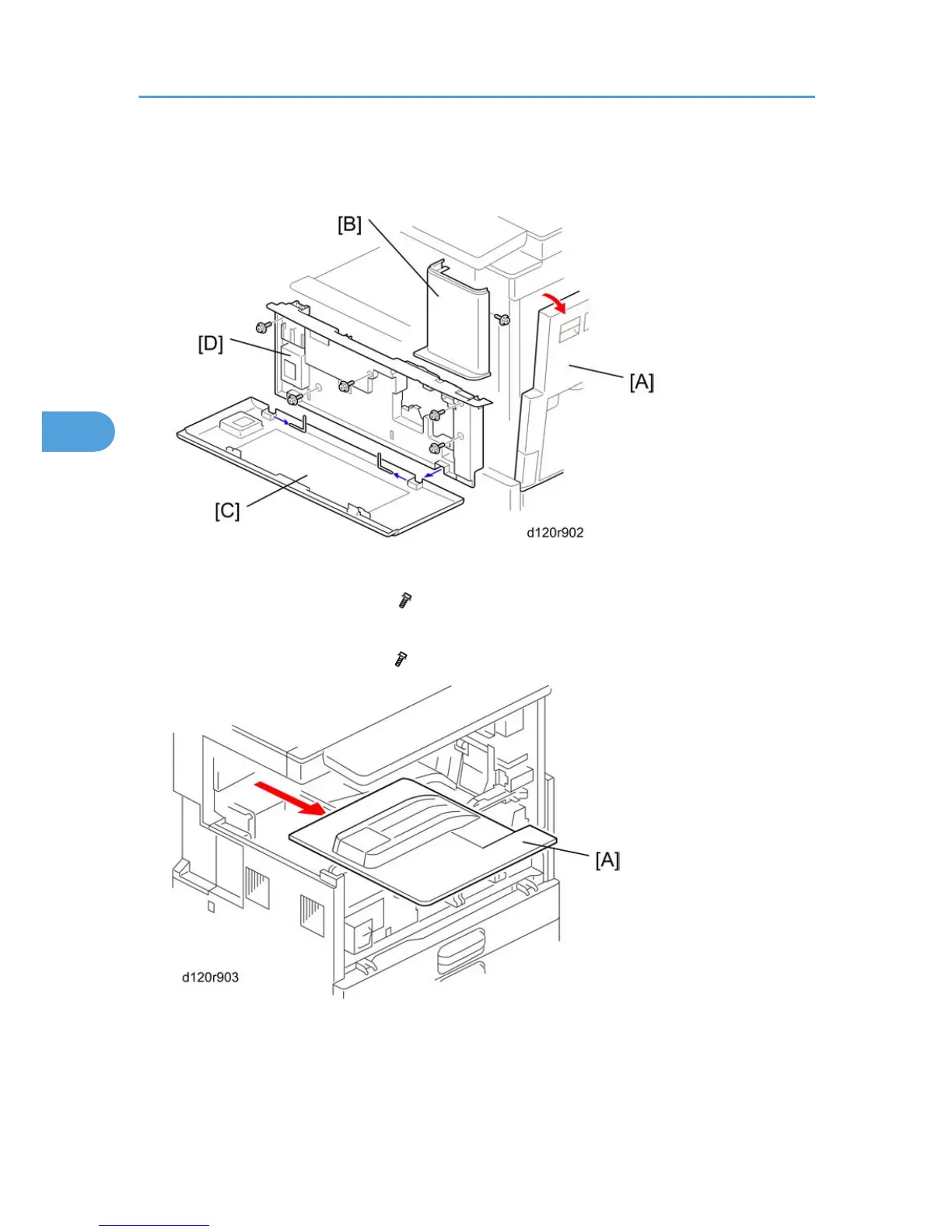

2. Open the duplex unit [A].
3. Remove the upper front cover [B] ( x1, Hook x1).
4. Remove the front cover [C] (Pins x2).
5. Remove the front inner cover [D] ( x5).
6. Remove the output tray [A] (Hook x1).
4. Replacement and Adjustment
206
4
