7. Remove the paper feed unit [A] ( x 2, x 1 each).
Pull the left side of the paper feed unit, and slide it to the left.

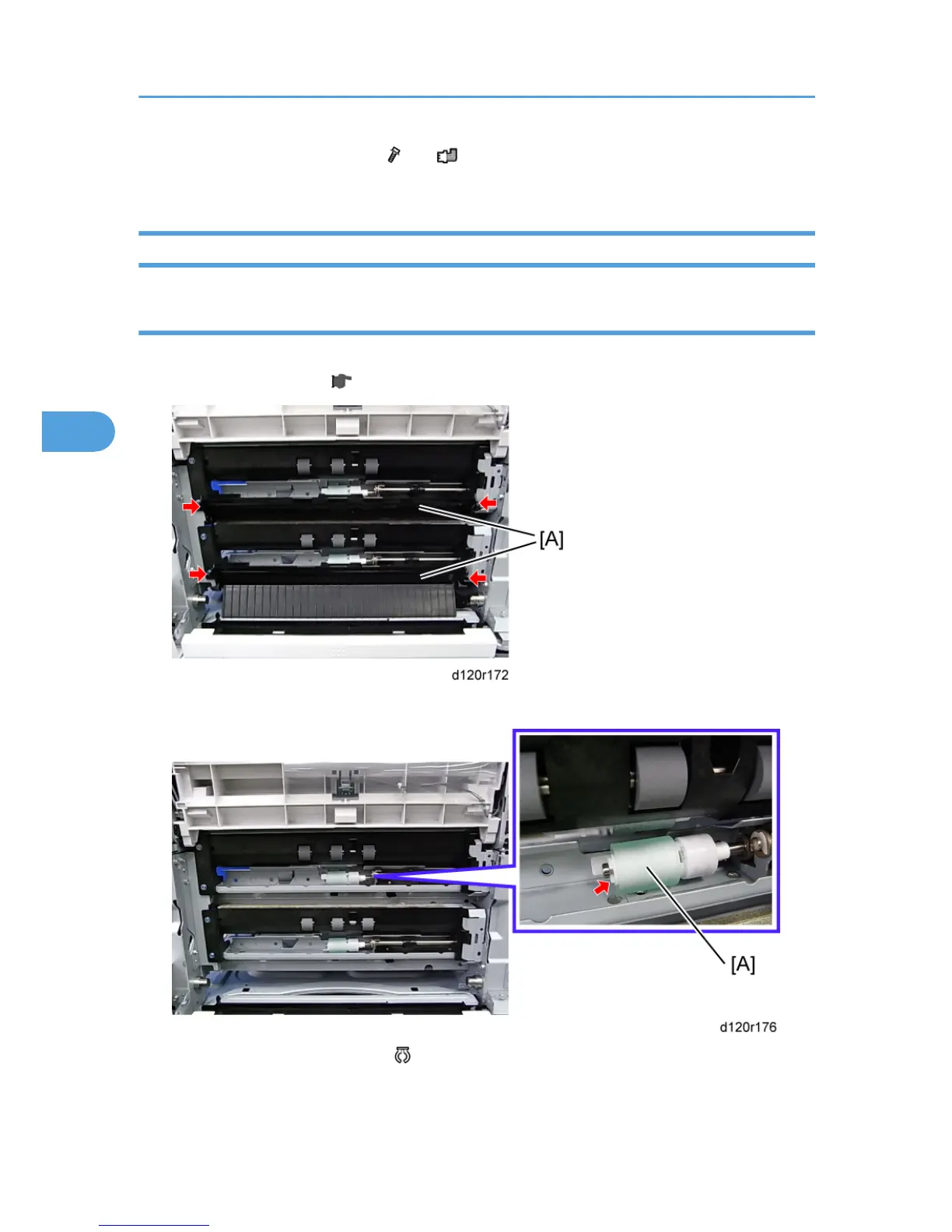

Separation Roller, Feed Roller
Tray 1 and Tray 2
1. Pull out the 1st and 2nd paper trays.
2. Remove the duplex unit ( p.245 "Duplex Unit")
3. Remove the paper guide plate [A] (tab x 2 each).
4. Replace the separation roller [A] ( x 1).
4. Replacement and Adjustment
234
4
