Ricoh OR-C1 User Manual

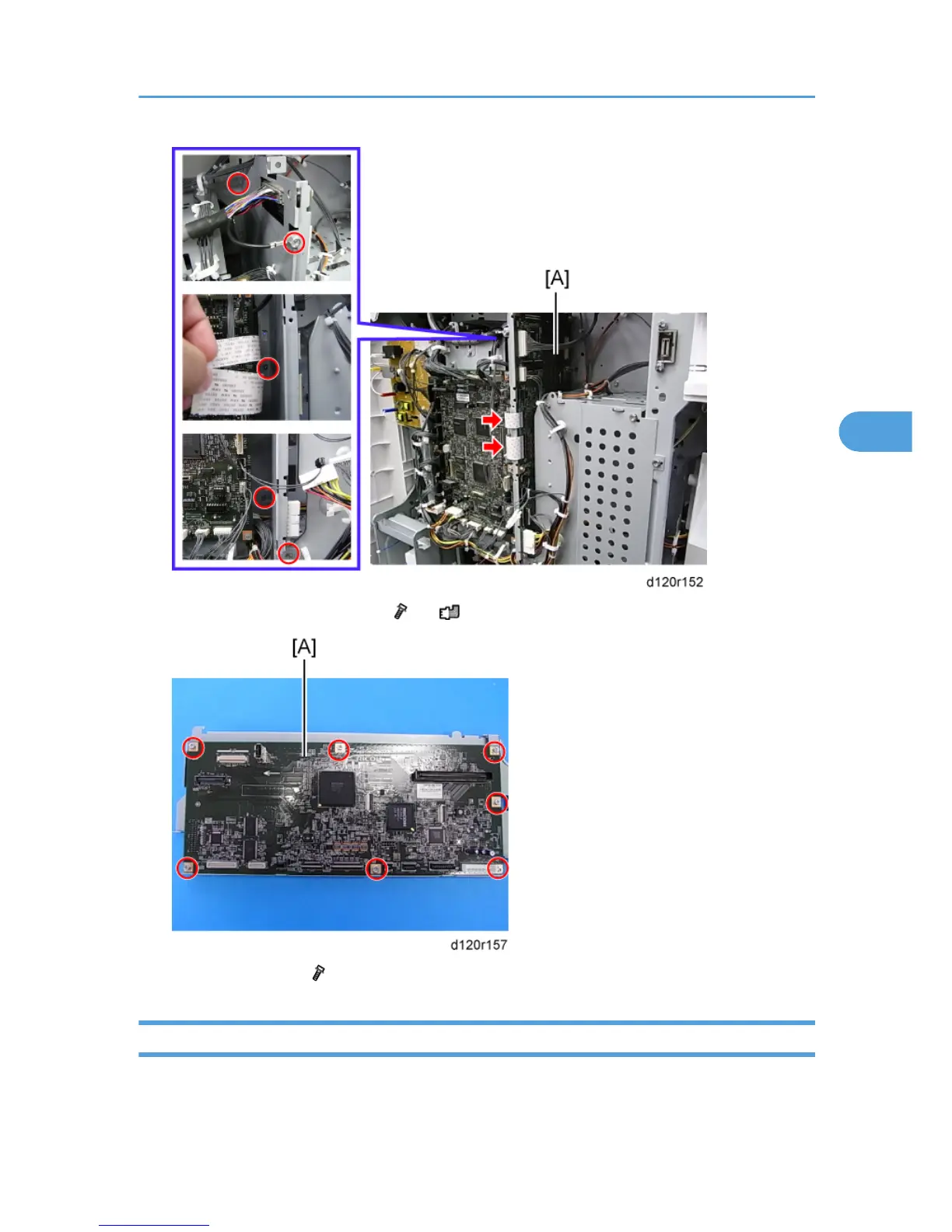

3. Remove the IPU with bracket [A] ( x5, x All, FFC x2).
4. Replace the IPU [A] ( x7).
HDD
1. Before you replace the HDD:
• Stop all SDK applications, and then remove it from the machine if the VM card is installed.
PCBs and Other Items
267
4
