• The following procedure should be done after adjusting the side-to-side registration for each paper
tray station.

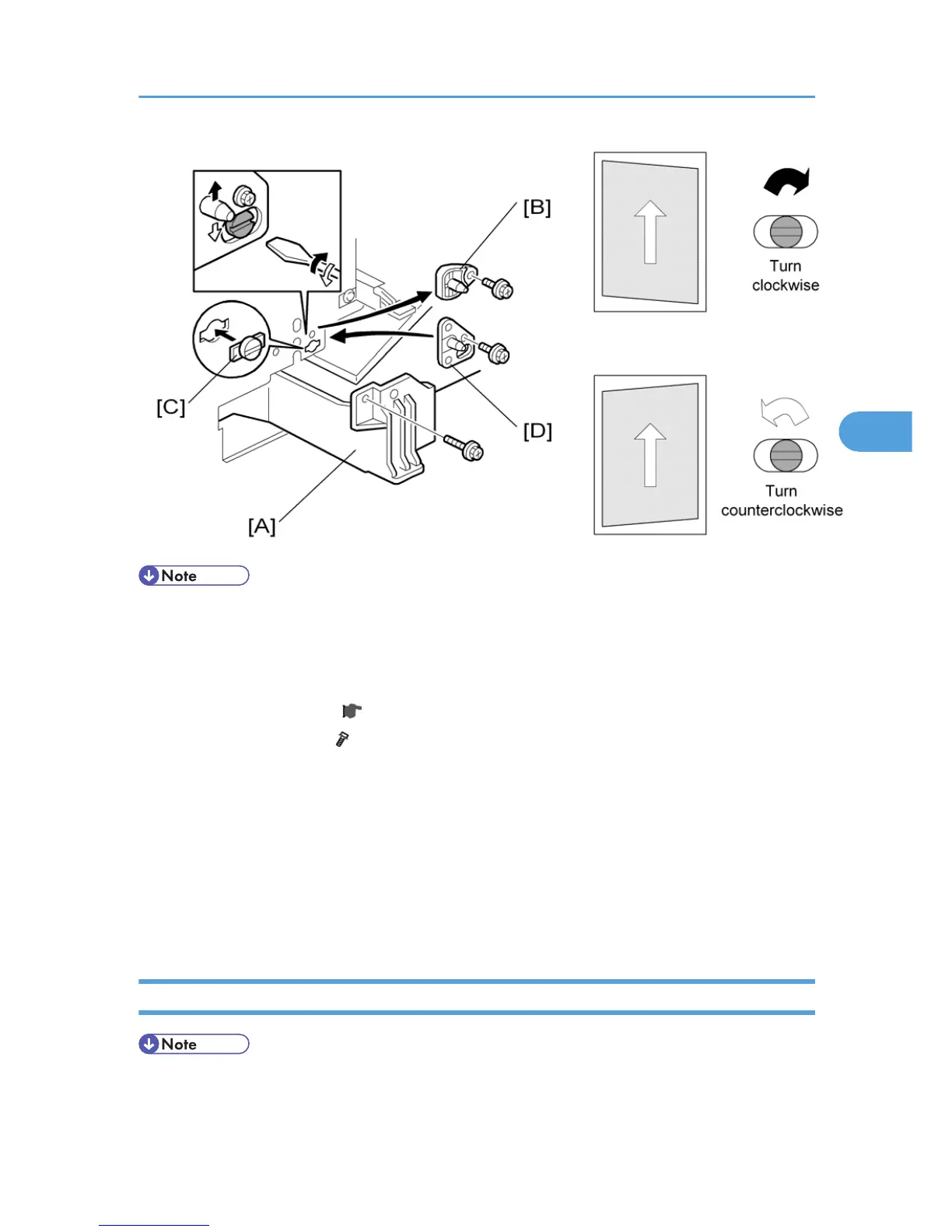

1. Check whether the trimming area pattern (SP2-109, No.14) is printed as a parallelogram, as
shown. If it is, do the following.
2. Remove the laser unit [A] ( p.205 "Laser Unit").
3. Remove the bracket [B] ( x2).
4. Install the adjusting cam [C] (P/N: A2309003).
5. Secure the adjustment bracket [D] (P/N: A1849501) using the screw which was used for bracket
[B]. However, do not tighten the screws at this time.
6.
Adjusts the laser unit position by turning the adjusting cam. (Refer to the above illustration for the
relationship between the image and the cam rotation direction).
7. Tighten the adjustment bracket.
8. Print the trimming area pattern to check the image. If it is still unsatisfactory, repeat steps 4 to 8.
Scanning
• Before doing the following scanner adjustments, perform or check the printing registration/side-to-
side adjustment and the blank margin adjustment.
Copy Adjustments: Printing/Scanning
275
