Scanner Unit
Exposure Glass

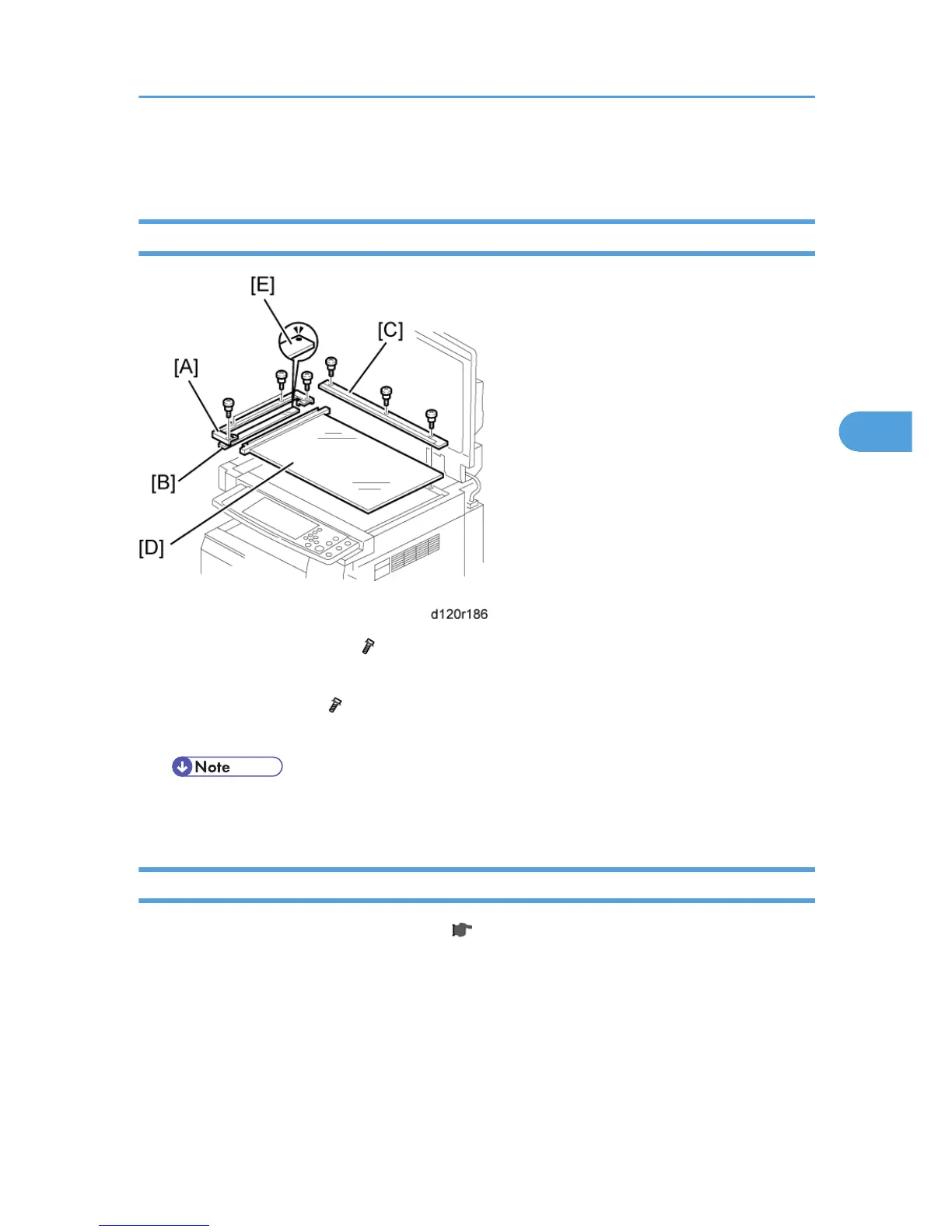

1. Remove the glass cover [A] ( x 4).
2. Remove the ARDF exposure glass [B].
3. Remove the rear scale ( x 3).
4. Replace the exposure glass with left scale.
• Position the blue marker [E] at the rear-left corner when you reattach the ARDF exposure
glass.
Original Length Sensors
1. Remove the exposure glass with left scale. ( p.187 "Exposure Glass")
Scanner Unit
187
