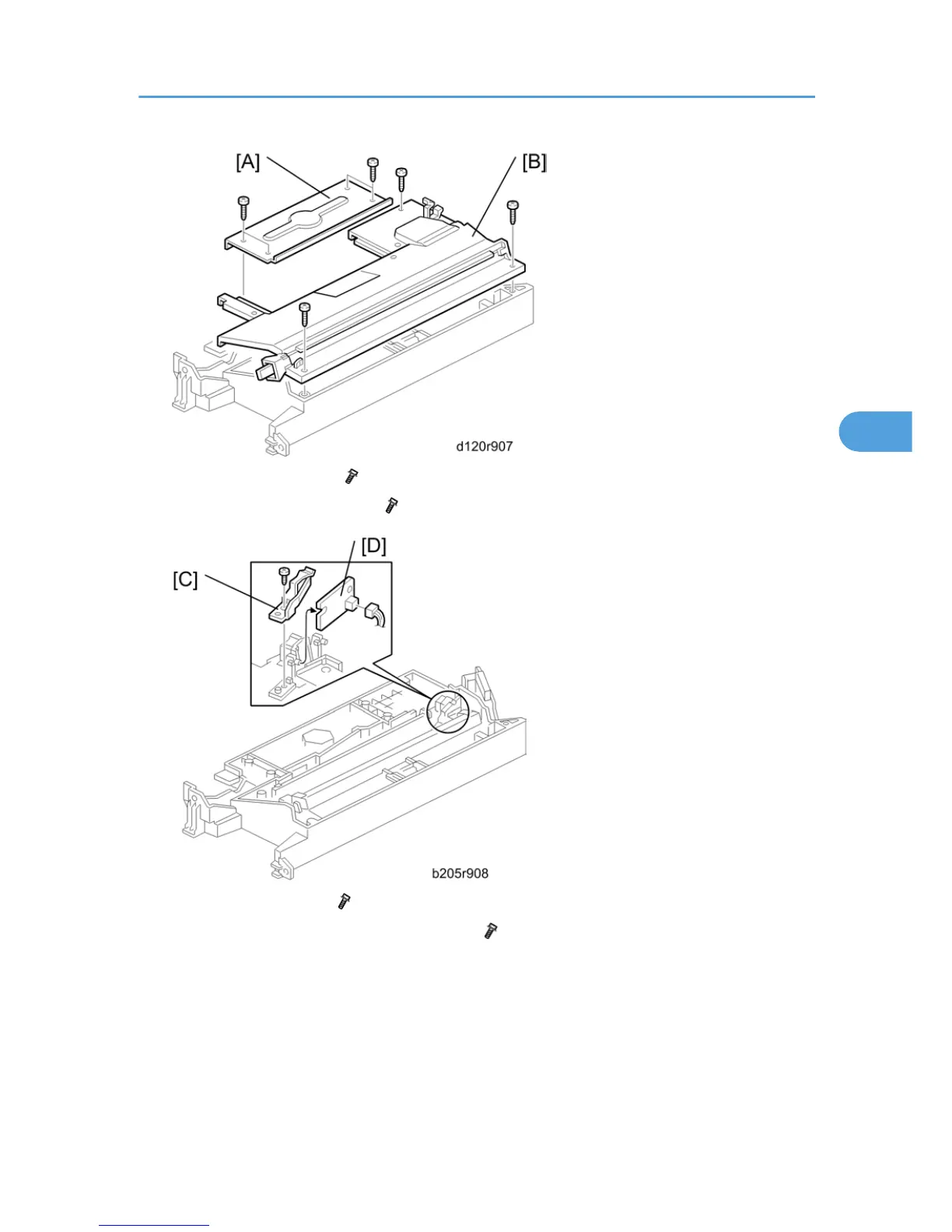

2. Remove the heat sink [A] ( x4).
3. Remove the laser unit cover [B] ( x3).
4. Remove the bracket [C] ( x1).
5.
Replace the laser synchronization detector [D] (
x1).
Laser Unit
209
4
