Ricoh OR-C1 - Page 144

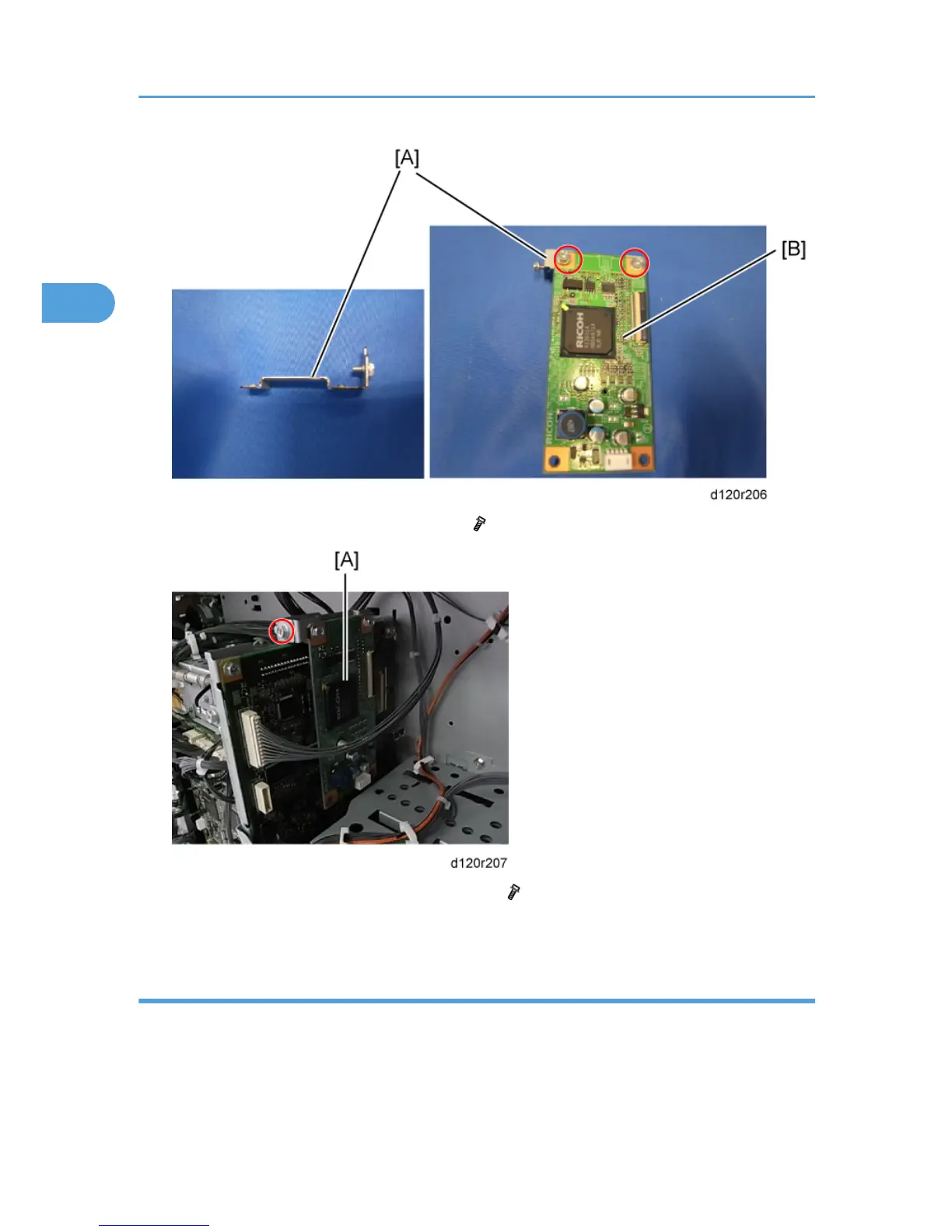

2. Attach the small bracket [A] to the ICIB-3 [B] ( x 2).
3. Attach the ICIB-3 with small bracket [A] to the IPU ( x 1).
4. Reassemble the machine.
User Tool Setting
1. Plug in the machine and turn on the main power switch.
2. Go into the User Tools mode, and select System Settings > Administrator Tools > Copy Data
Security Option > “On”.
3. Exit User Tools.
2. Installation
142
2
