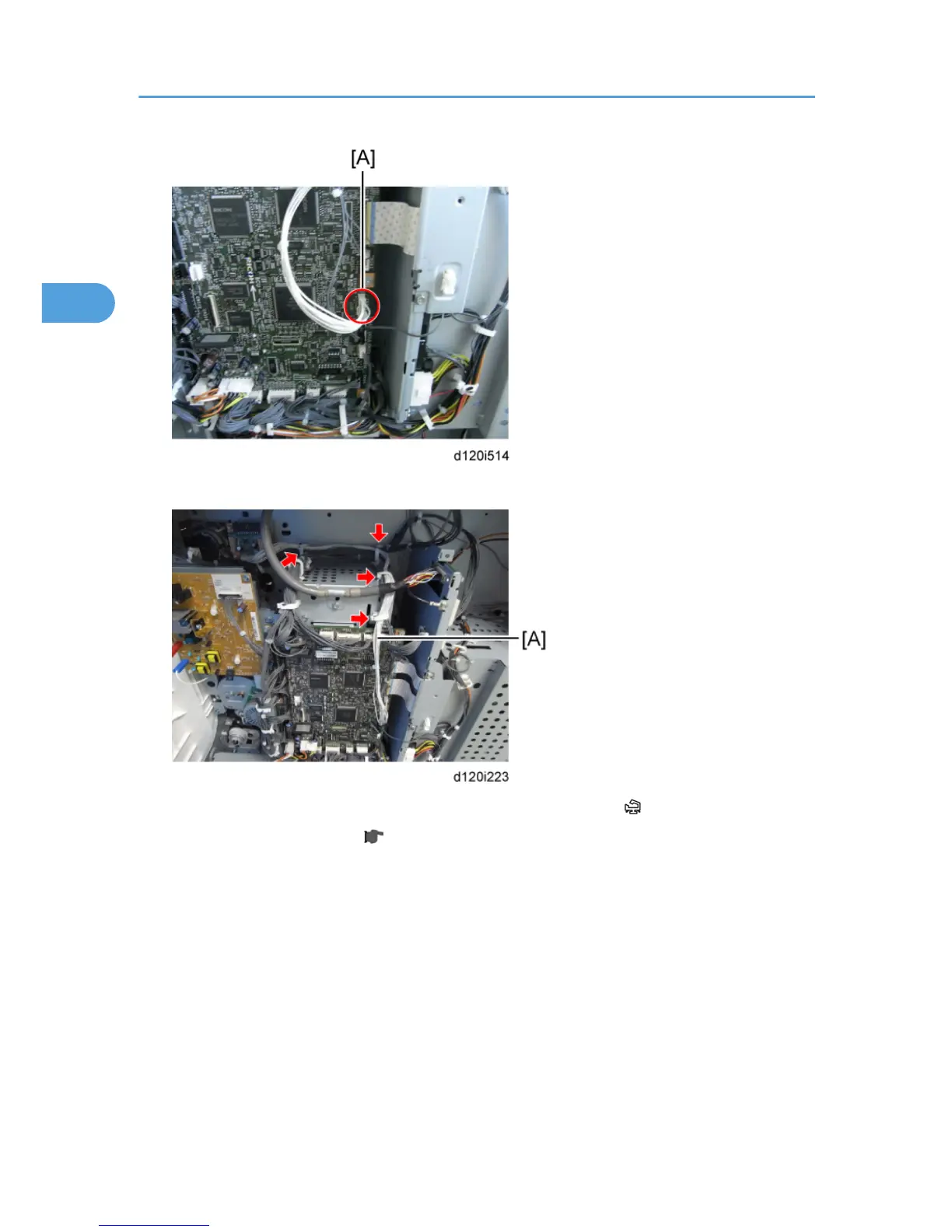

5. Connect the other terminal of the harness to "CN345" [A] on the BCU.

6. Route the harness [A] and clamp it with four clamps as shown above ( x 4).

7. Remove the right rear cover. ( p.181 "Right Rear Cover")

2. Installation

120

2
