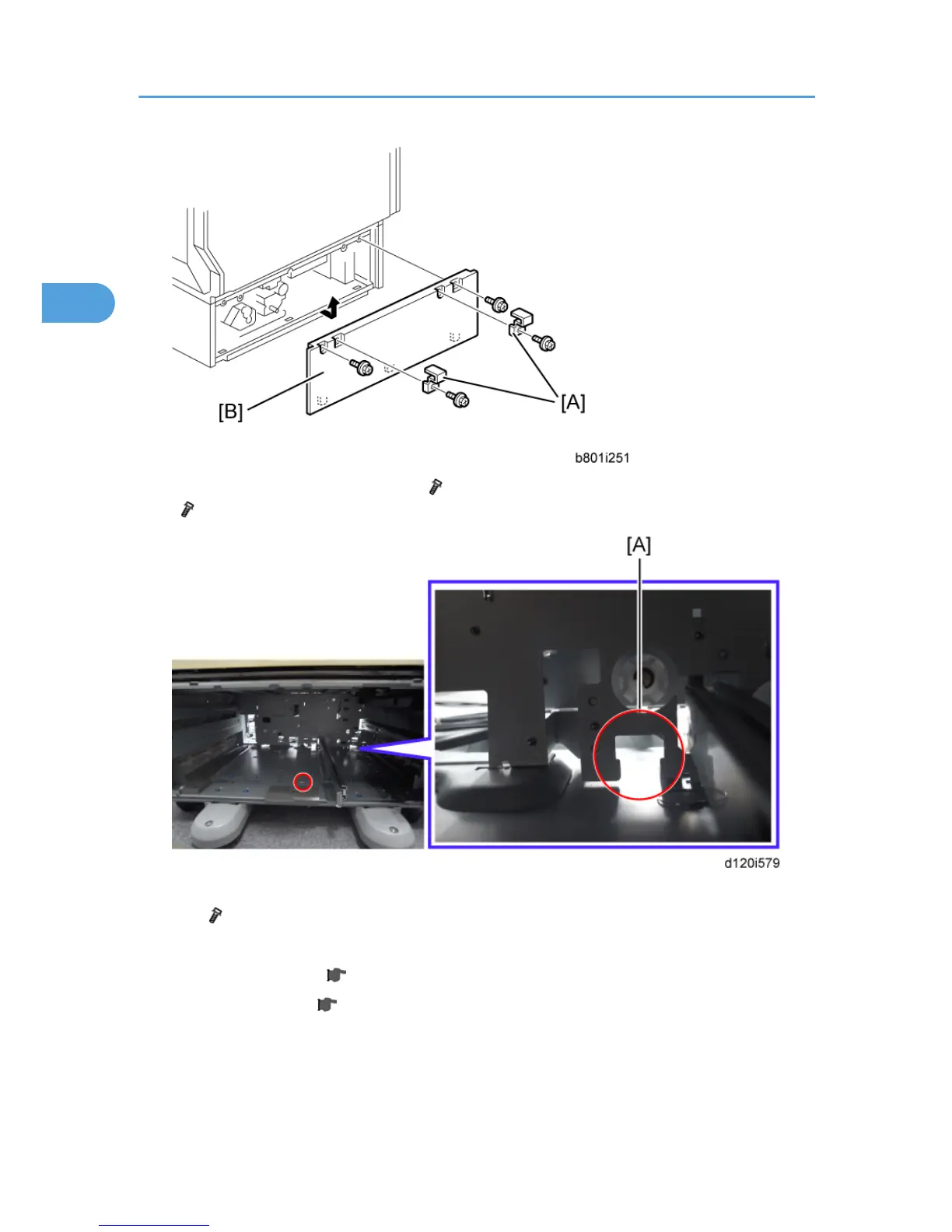

4. Remove the two securing brackets [A] ( x 1 each), and then the rear cover [B] of the optional LCT
( x 2).
5. Pass the heater cable through the opening [A], and then install the tray heater in the optional paper
LCT ( x1).
6. Remove:
• Upper rear cover ( p.181 "Upper Rear Cover")
• Right rear cover ( p.181 "Right Rear Cover")
2. Installation
136
