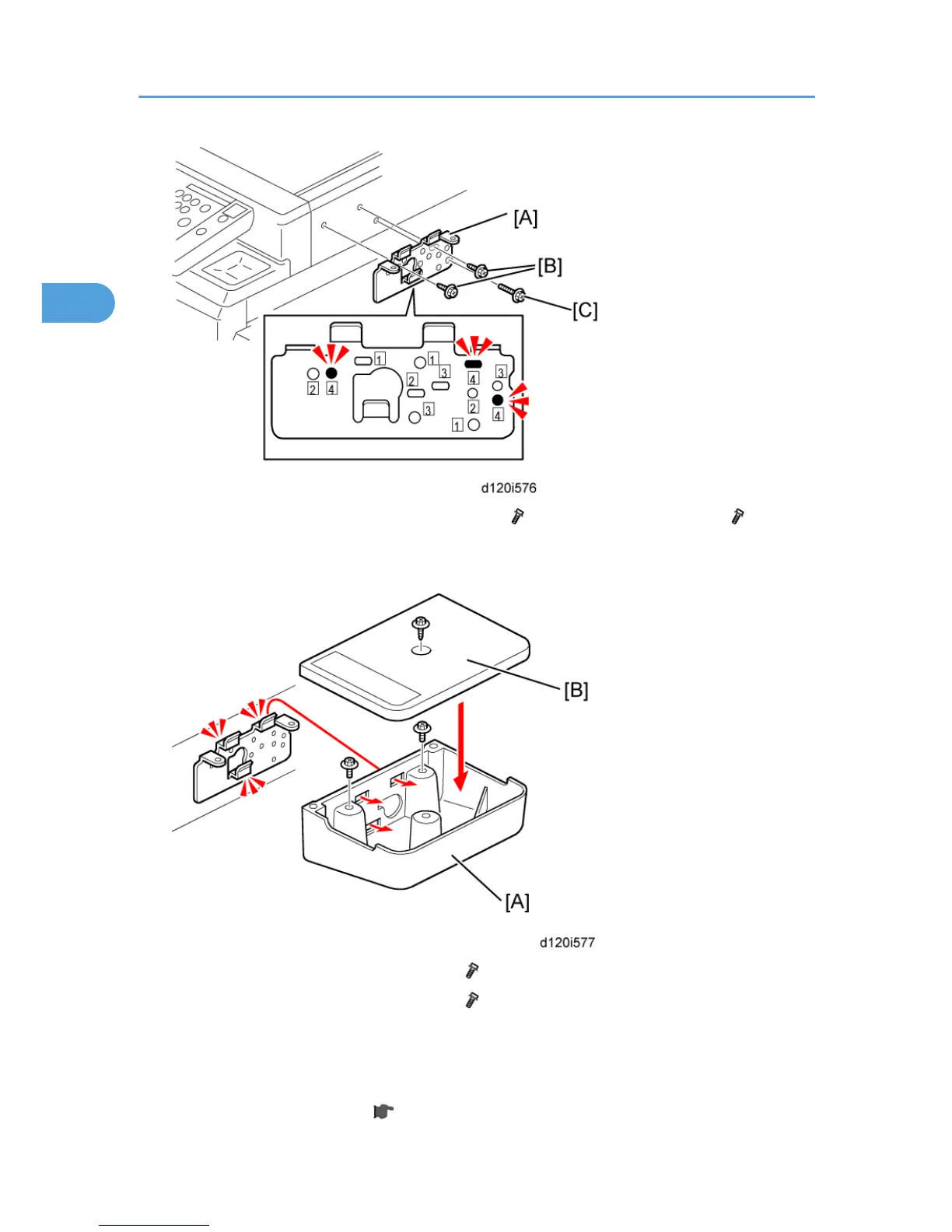

7. Attach the tray bracket [A] to the upper right cover ( [B] x 2: M3x8 tapping screw, [C] x 1:
M4x25).
•
For this model, use the screw holes marked "4" on the table bracket.
8. Attach the lower tray [A] to the tray bracket ( x 2: M3x8).
9. Attach the upper tray [B] to the tray bracket ( x 1: M3x8).
10. Connect the cable to the designated connector (the connector to use depends on the type of device
to be connected).
If you install the device with USB cable.
1. Remove the upper rear cover. ( p.181 "Upper Rear Cover")
2. Installation
