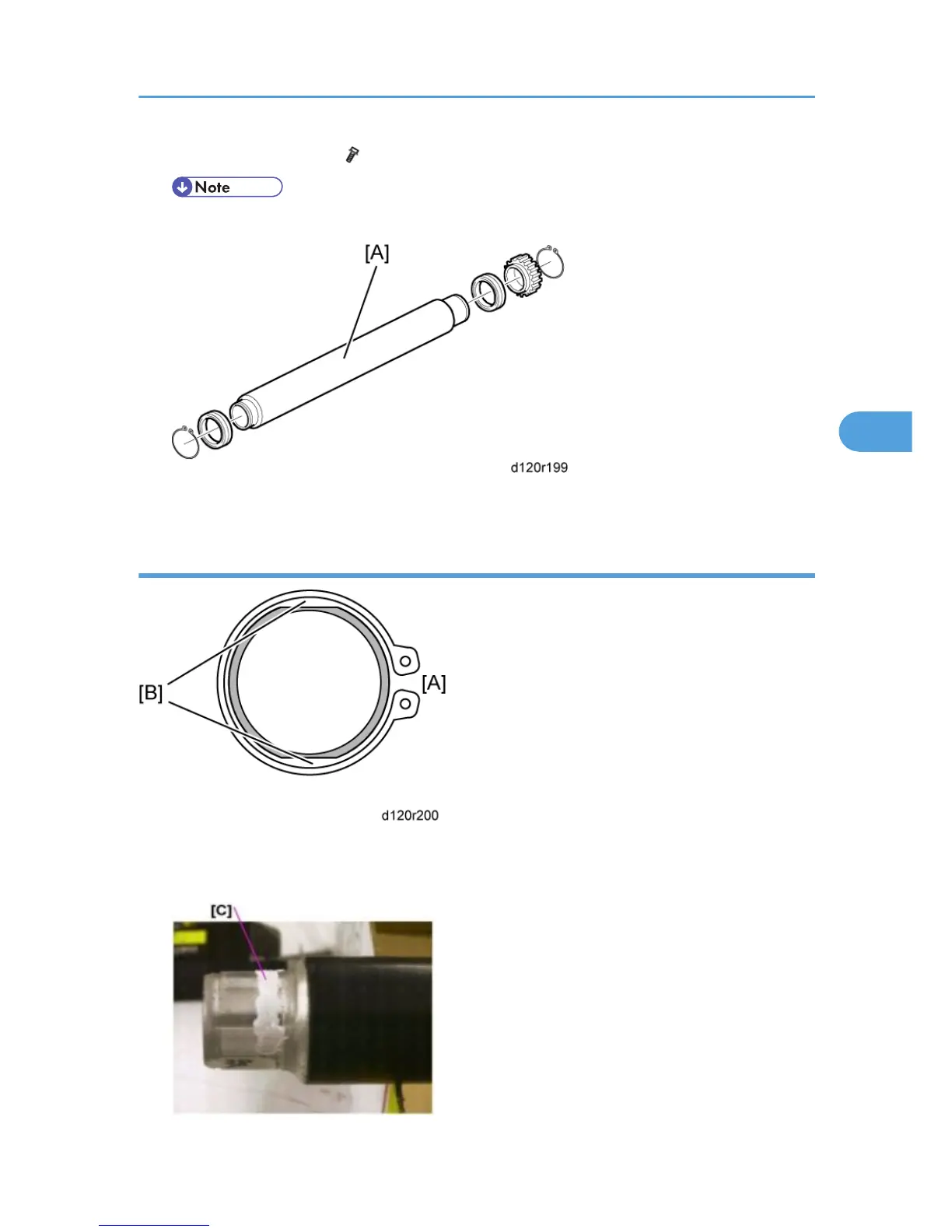

3. Replace the fusing lamps ( x4) and hot roller assembly [A].
• Do not touch the surface of the fusing lamp with bare hands.
4. Replace the hot roller [A] (C-rings x2, Gear x1, Bushings x2).
Reinstallation
1. At the rear (gear-side), attach the C-ring so that the opening [A] is 90 degrees from the D-cut
sections [B] of the fusing roller.
Fusing/Exit
227
