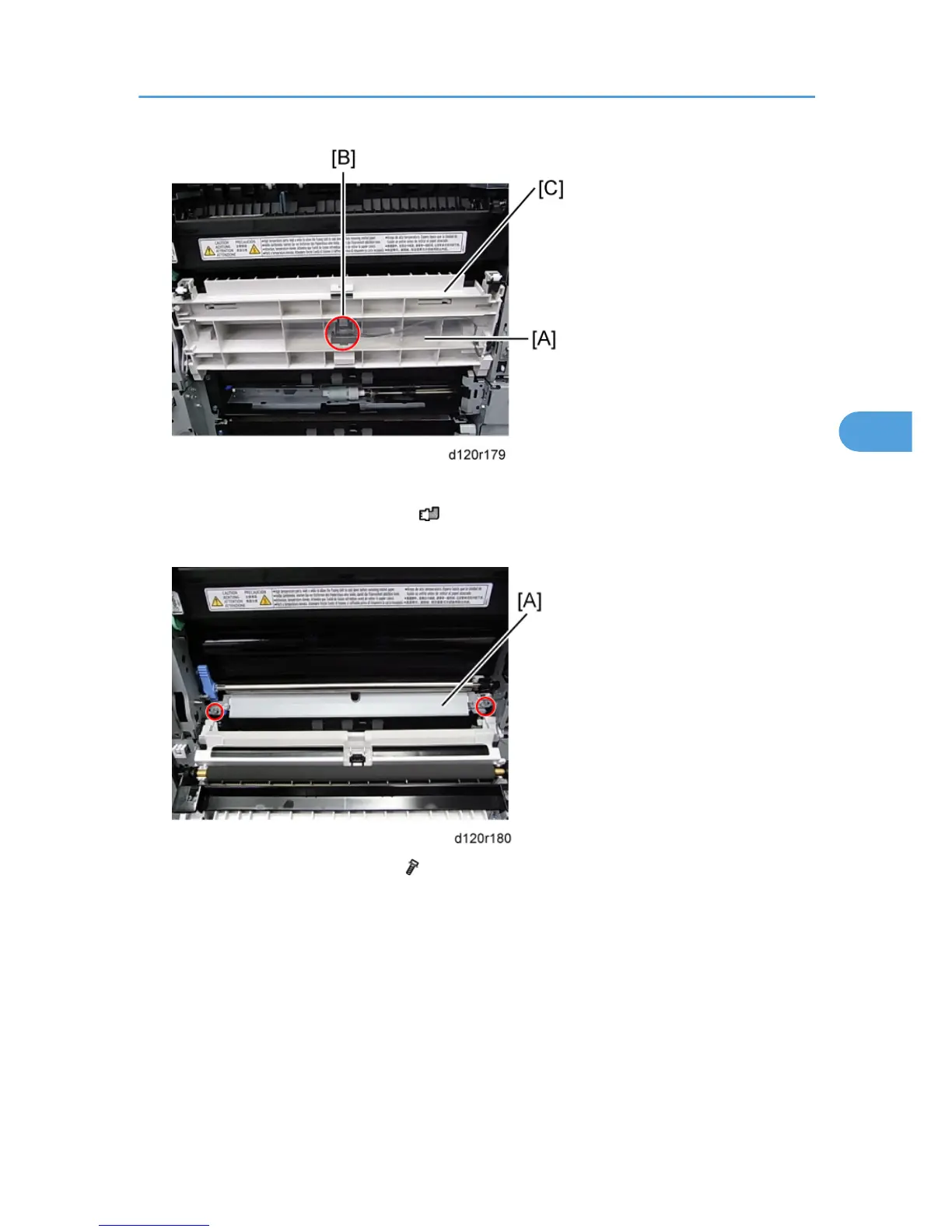

1. Displace the mylar [A] of the transfer roller guide.
2. Remove the image density sensor [B] ( x1).
3. Open the transfer roller guide [C].
4. Remove the paper guide plate [A] ( x2).
