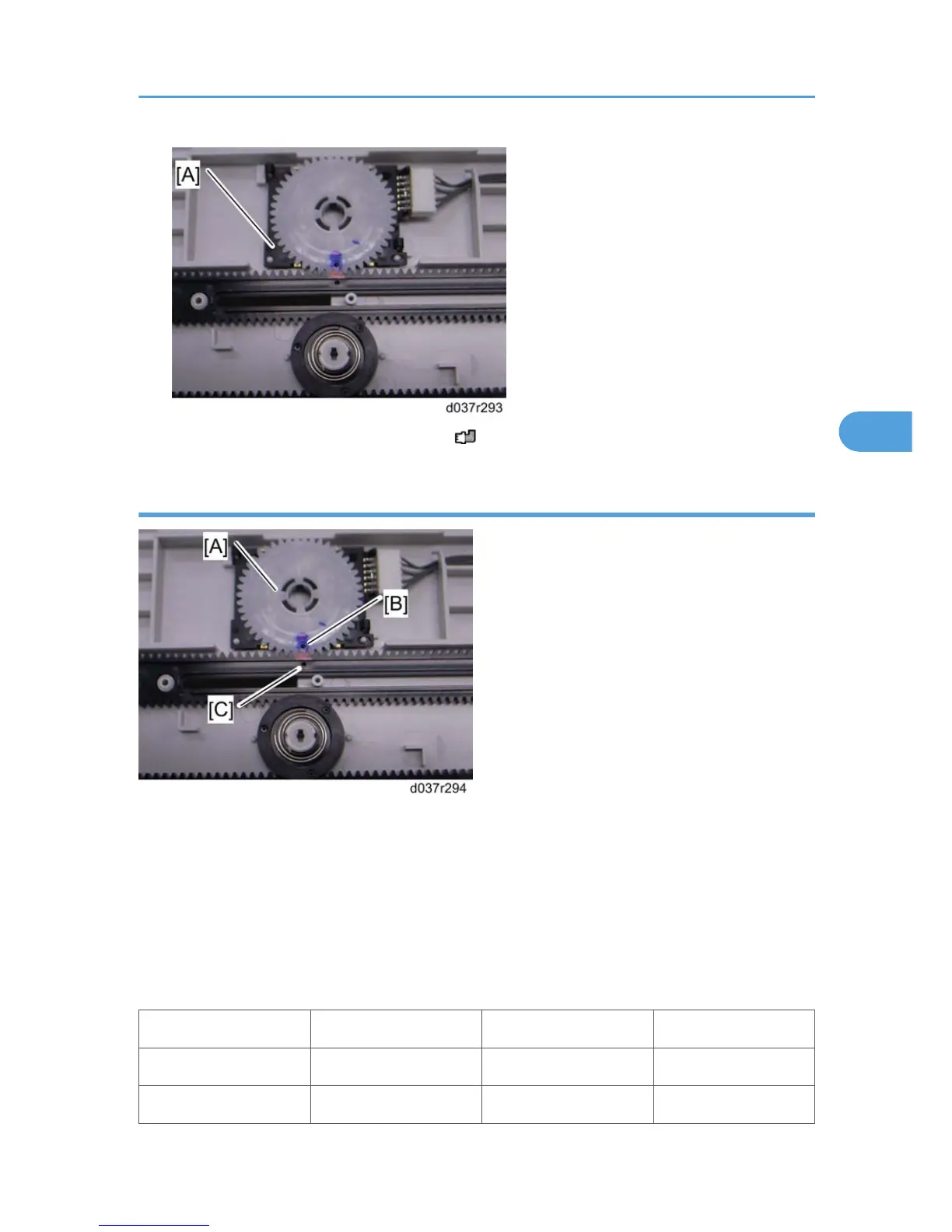

3. Replace the by-pass paper size sensor [A] ( x 1).
When reinstalling the by-pass paper size sensor
1. Adjust the projection [A] of the left side fence bar (it must be centered).
2. Install the by-pass paper size detection switch so that the hole [B] in this switch faces the projection
[C] of the left side fence bar.
3. Reassemble the copier.
4.
Plug in and turn on the main power switch.
5. Check this switch operation with SP5-803-046 (By-Pass Size Detection SW < Input Check).
- Display on the LCD -
Paper Size Display Paper Size Display
A3 SEF 00001001 A5 SEF 00001110
B4 SEF 00001011 B6 SEF 00001100
Duplex Unit
255
