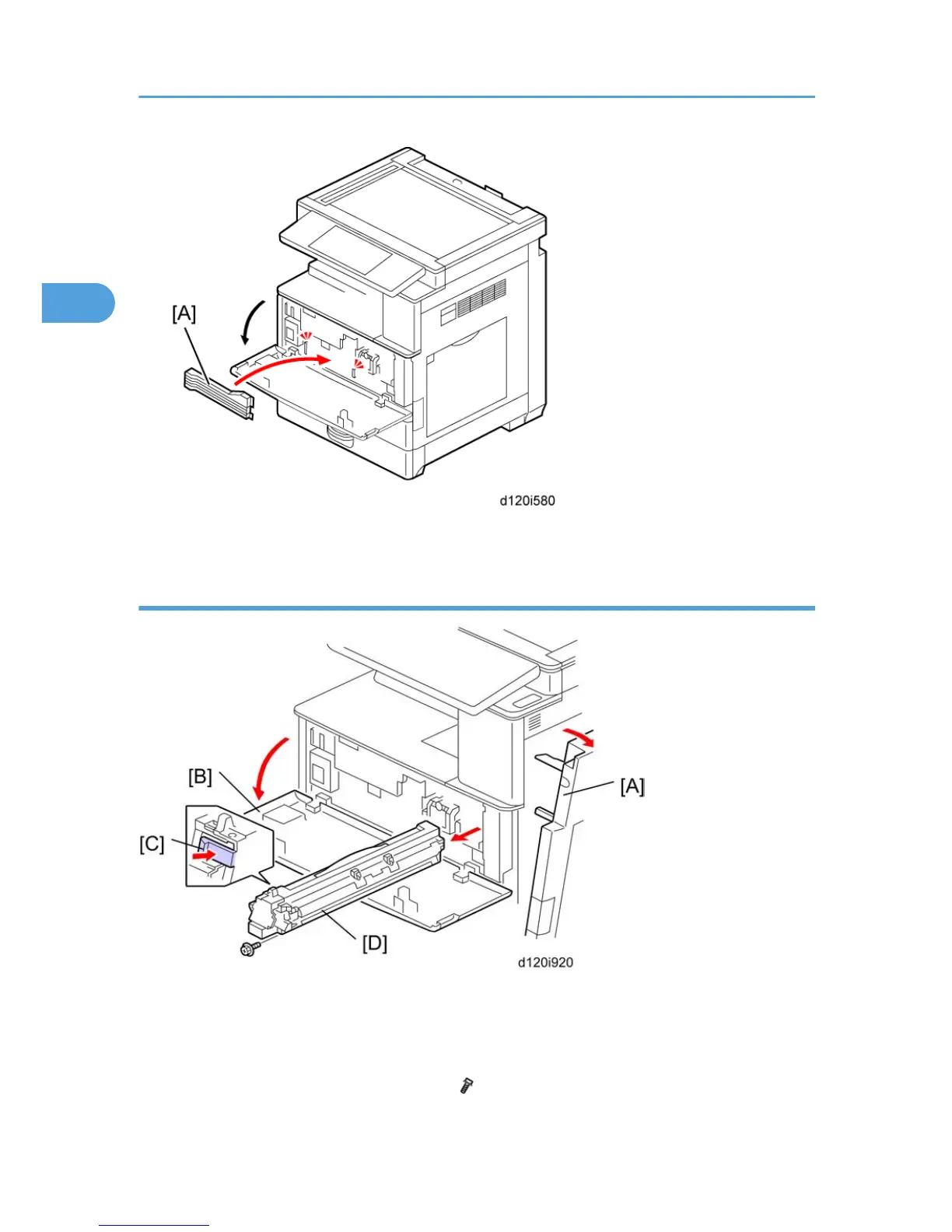

3. Open the front cover, and then keep the scanner unit stay [A] inside the front door.
Developer
1. Spread the vinyl sheet provided with the developer kit on a flat surface.
2. Open the right cover [A].
3. Open the front cover [B].
4.
Push the latch [C] and remove the PCU [D] (
x 1).
2. Installation
32
2
