Ricoh OR-C1 - Page 38

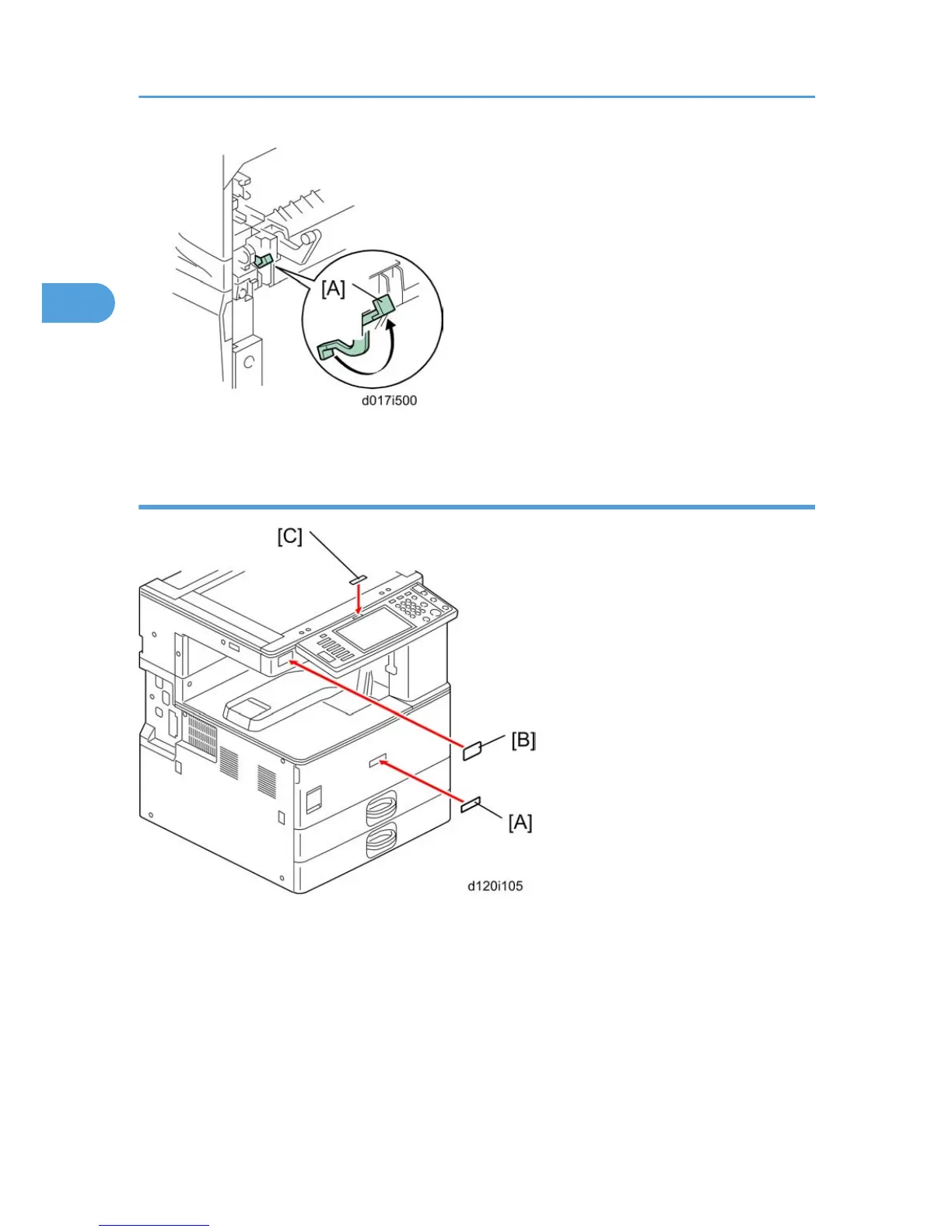

6. Rotate the green fusing pressure lever [A] to the up position.
Emblem, Decals
1. Attach the emblem [A] to the center of the front cover
2.
Attach the model name decal [B] to the front left of the front scanner cover.
3.
Attach the small emblem [C] to the top center on the operation panel.
2. Installation
36
2
