Ricoh OR-C1 - Paper Feed Unit PB3130 (D580)

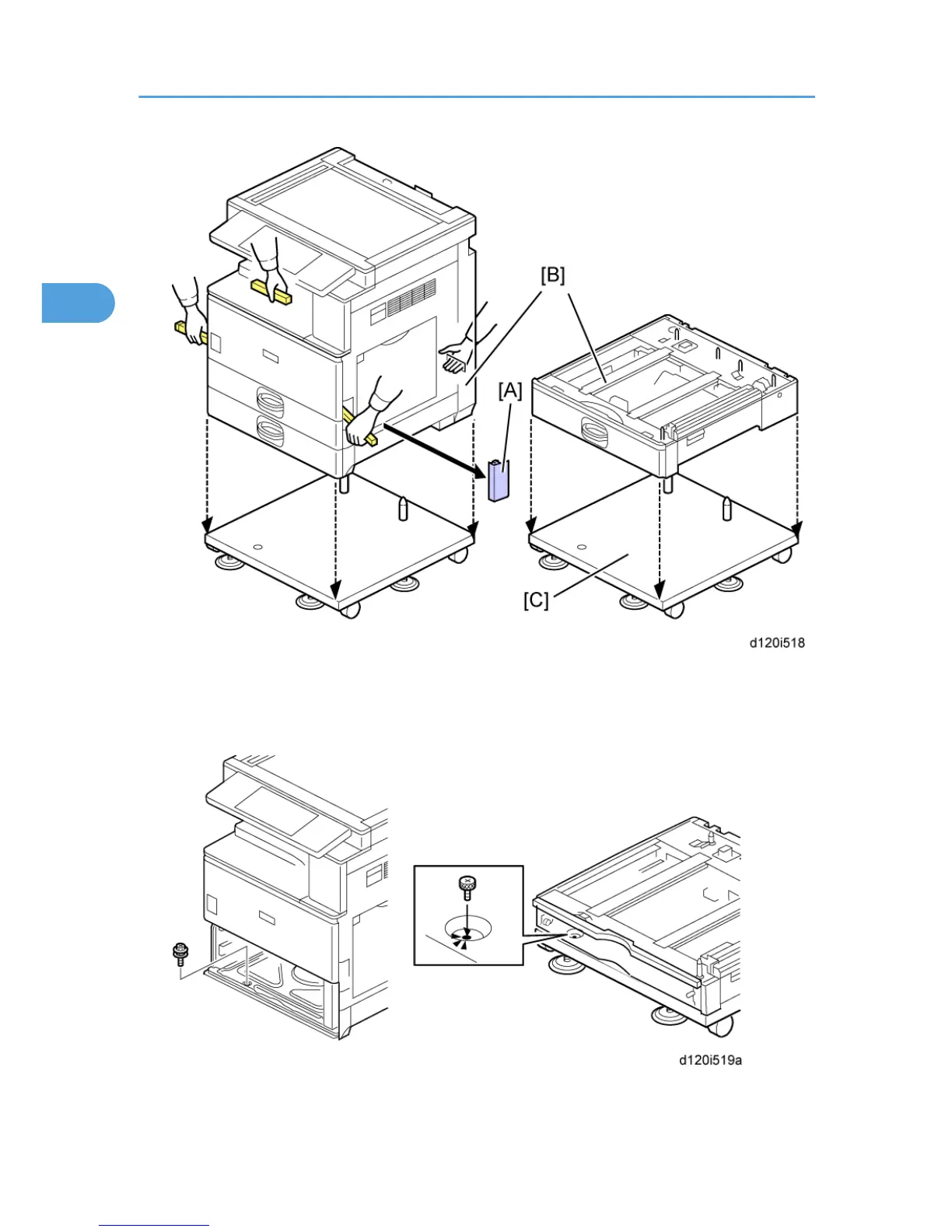

2. Remove the grip cover [A] at the front right of the main machine if this cover is attached.
3. Lift the mainframe or the one-tray paper feed unit [B], and then install it on the caster table [C].
4. Pull out the tray of the mainframe or the one-tray paper feed unit.
5. Secure the mainframe or the one-tray paper feed unit to the caster table (stud screw x 1)
2. Installation
