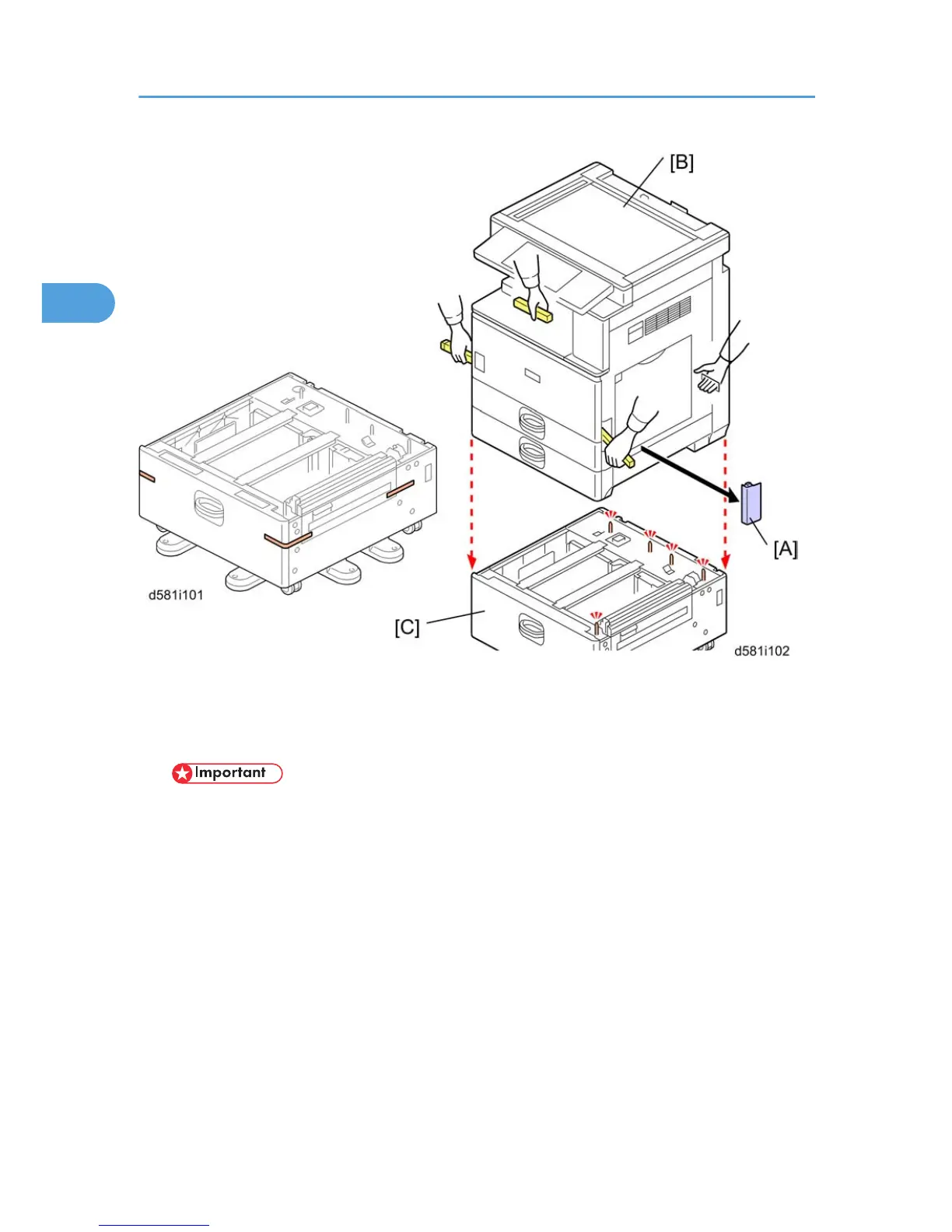

1. Remove the strips of tape.
2. Remove the grip cover [A] at the front right of the main machine if this cover is attached.
3. Pull out three grips, then hold the handle and grips, and put the copier [B] on the LCT [C].
• You need two or more persons to lift the copier.
4. Attach the grip cover [A] to the main machine.
