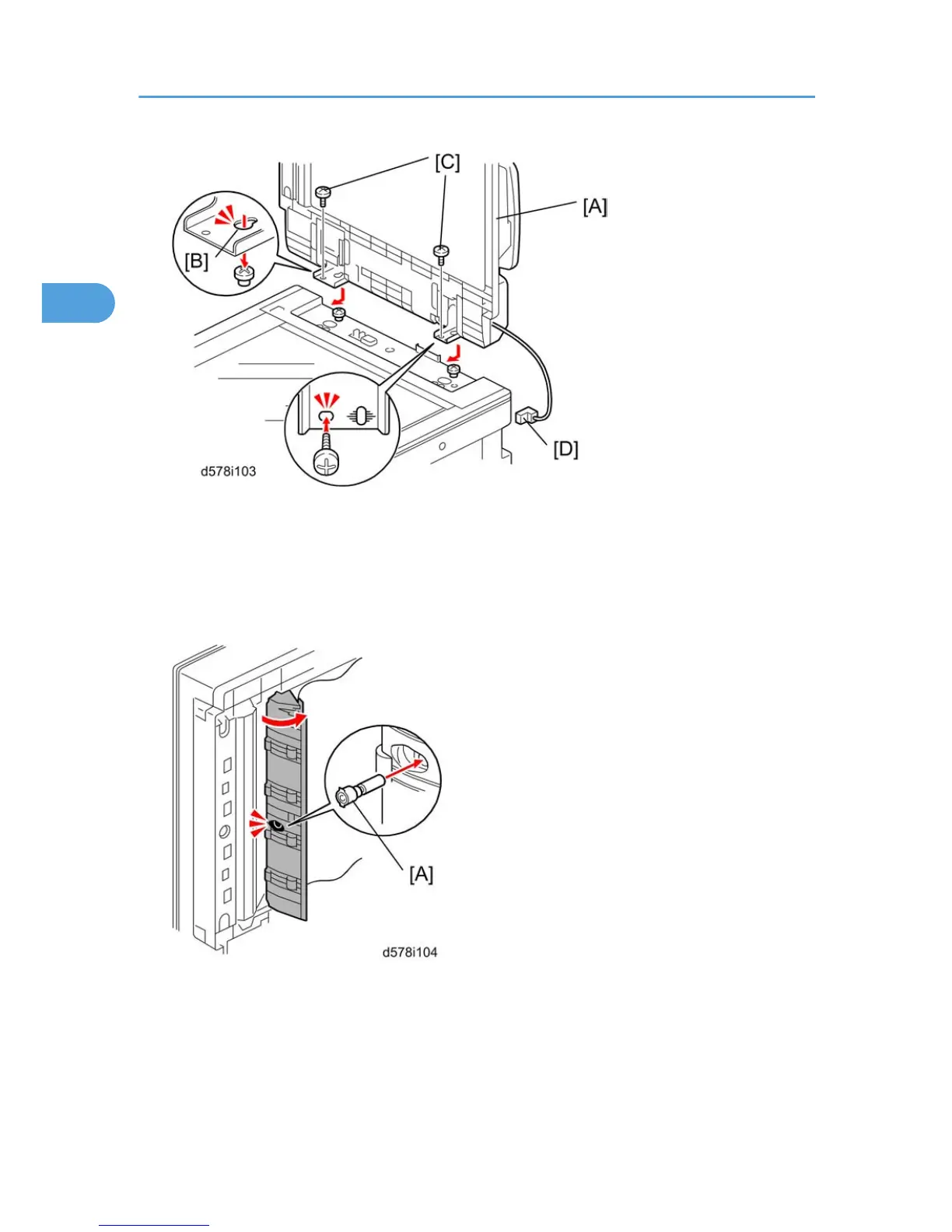

3. Mount the ARDF [A] by aligning the screw keyholes [B] of the ARDF support plate over the stud
screws.
4. Slide the ARDF toward the front of the machine.
5. Secure the ARDF with the two knob screws [C].
6.
Attach the interface cable [D] to the inlet of the machine.
7. Install the stamp cartridge [A] in the ARDF.
