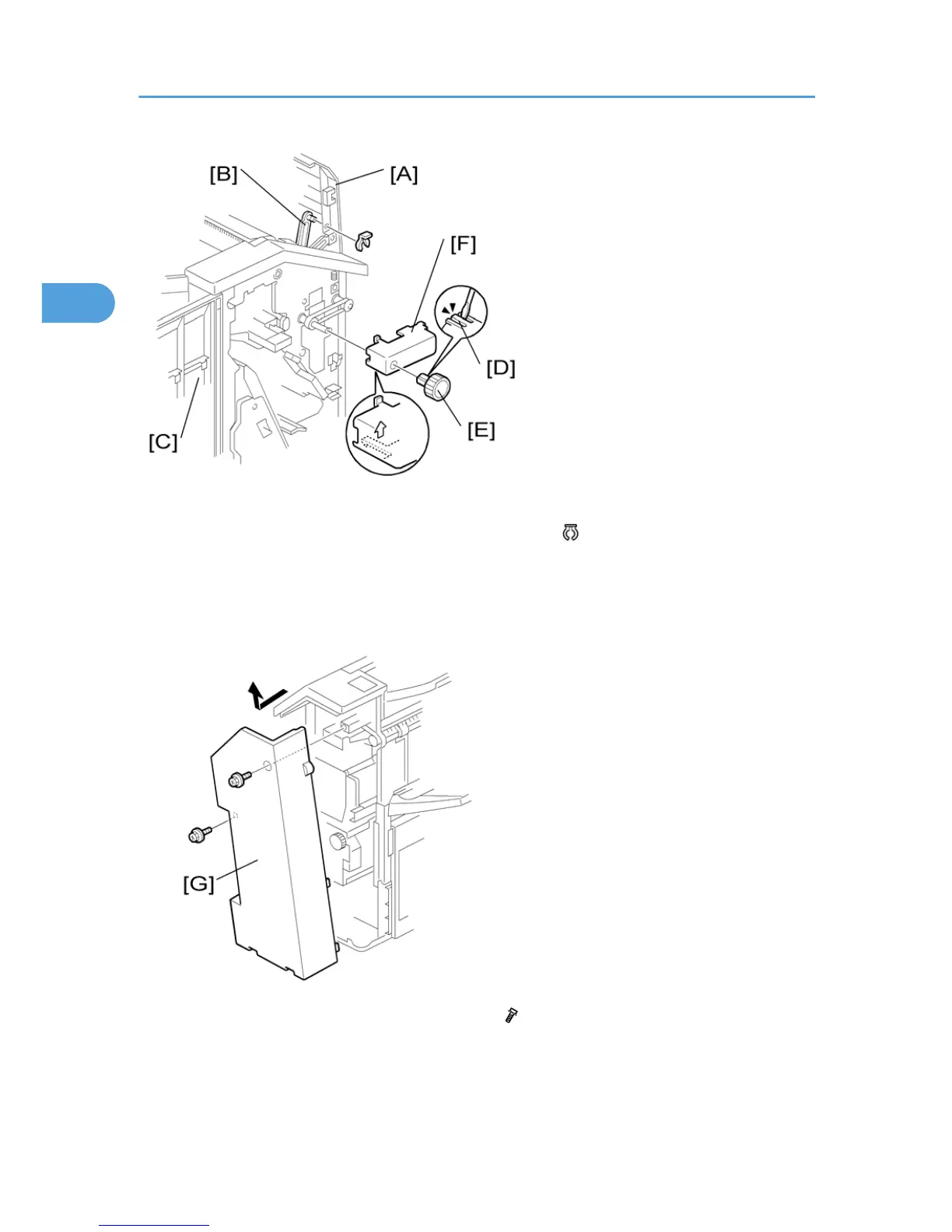

1. If the finisher is connected to the machine, disconnect it.
2. Open the top cover [A] and then release the guide arm [B] ( x 1).
3. Open the front door [C].
4. Pull the hook [D] up then remove the knob [E].
5.
Timing belt cover [F].
6. Rear cover of the 1000-sheet booklet finisher [G] ( x 2).
