Ricoh OR-C1 - Internal Finisher Type 3352 (D586)

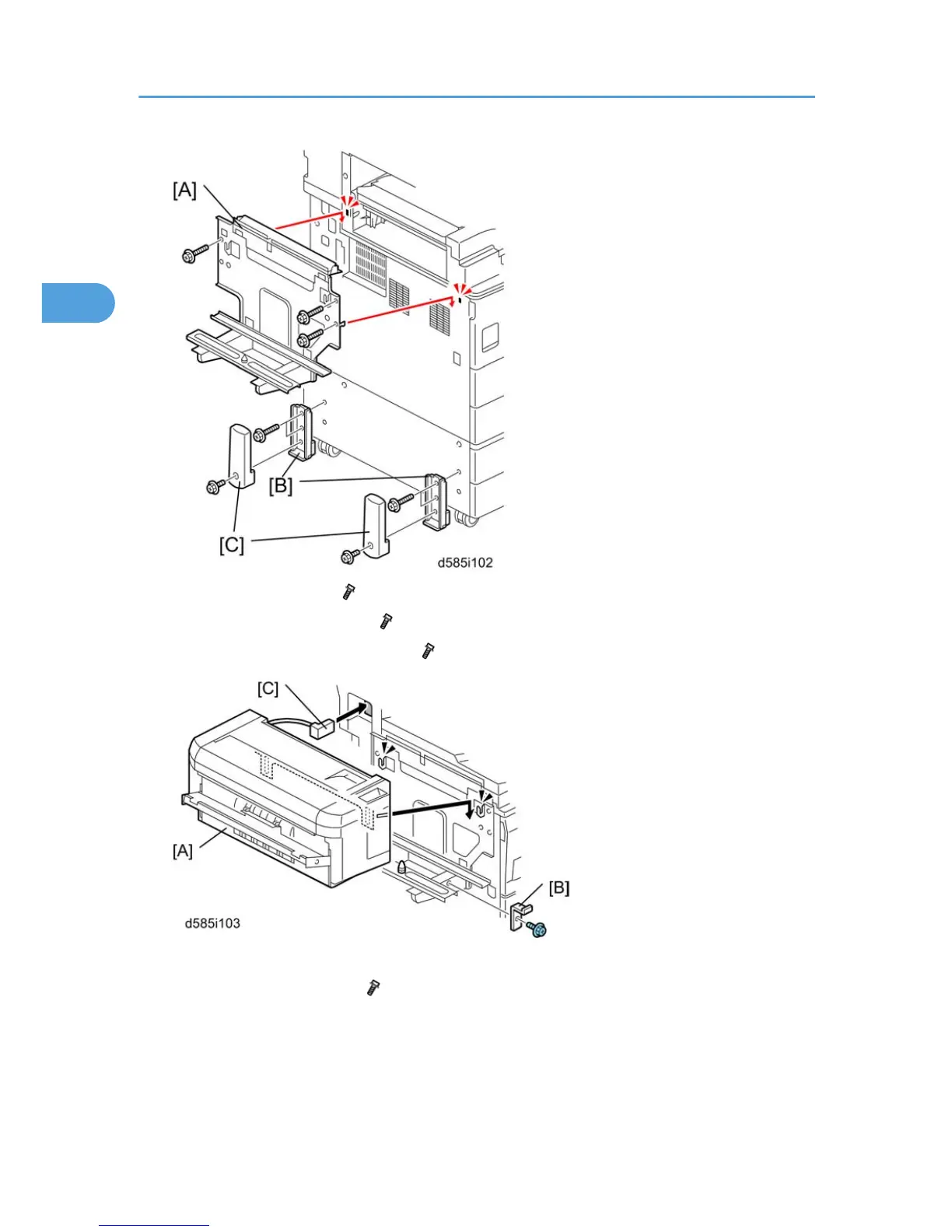

2. Install the unit holder [A] ( x 3; M4x25).
3. Install the support brackets [B] ( x 2 each; M4x20).
4. Install the support bracket covers [C] ( x 1 each; M3x8).
5. Install the 500-sheet finisher [A].
6.
Install the holder bracket [B] (
x 1; M3x6).
7.
Connect the finisher cable [C].
2. Installation
96
2
