Ricoh SP 4520DN - Page 125

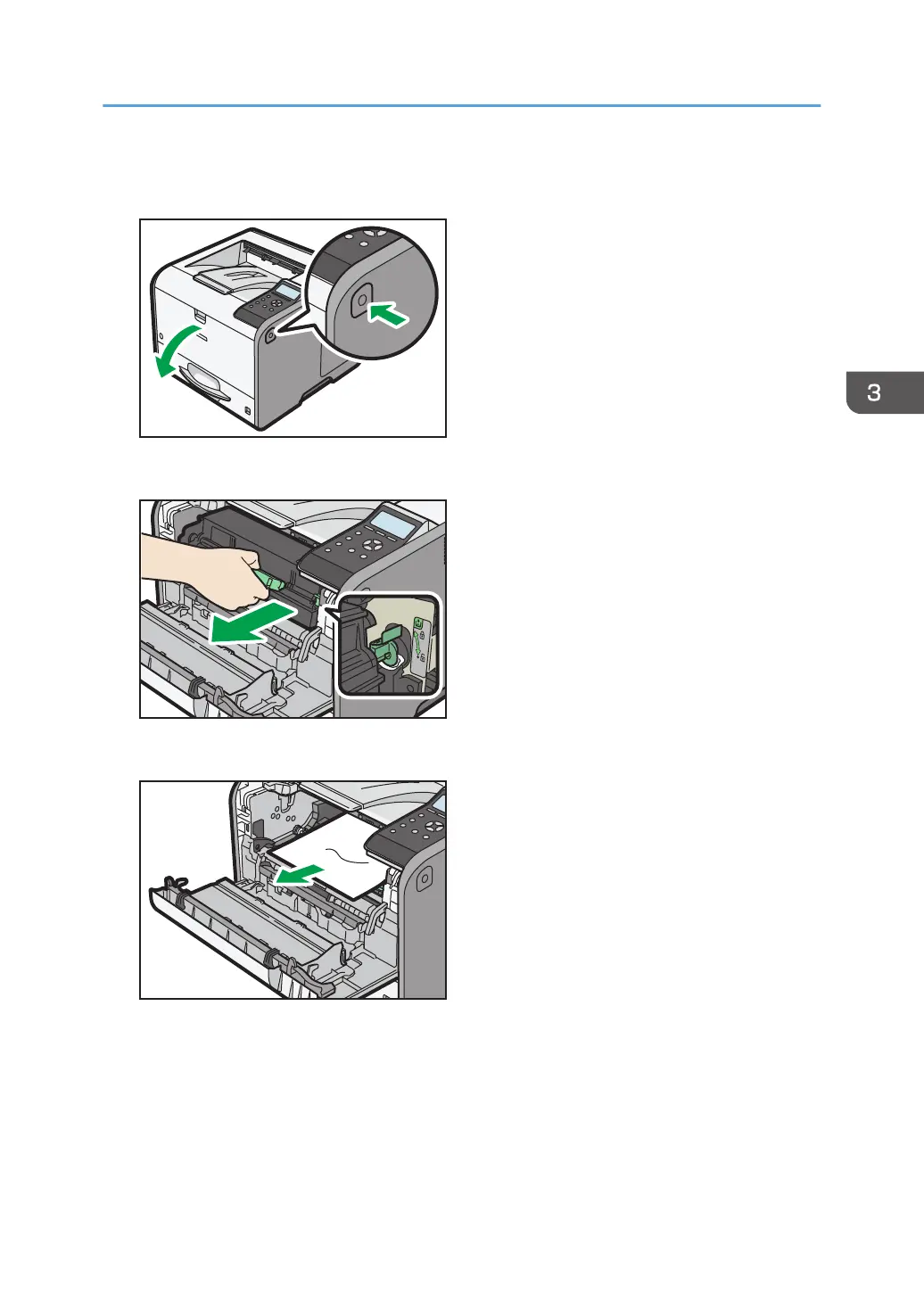

1. Push the button on the right side of the printer, and then open the front cover with both
hands carefully.
CYN005
2. Hold the print cartridge's front handle to lift and pull it out.
CYN050
3. Pull out the jammed paper carefully.
CYN059
Removing Jammed Paper
123
