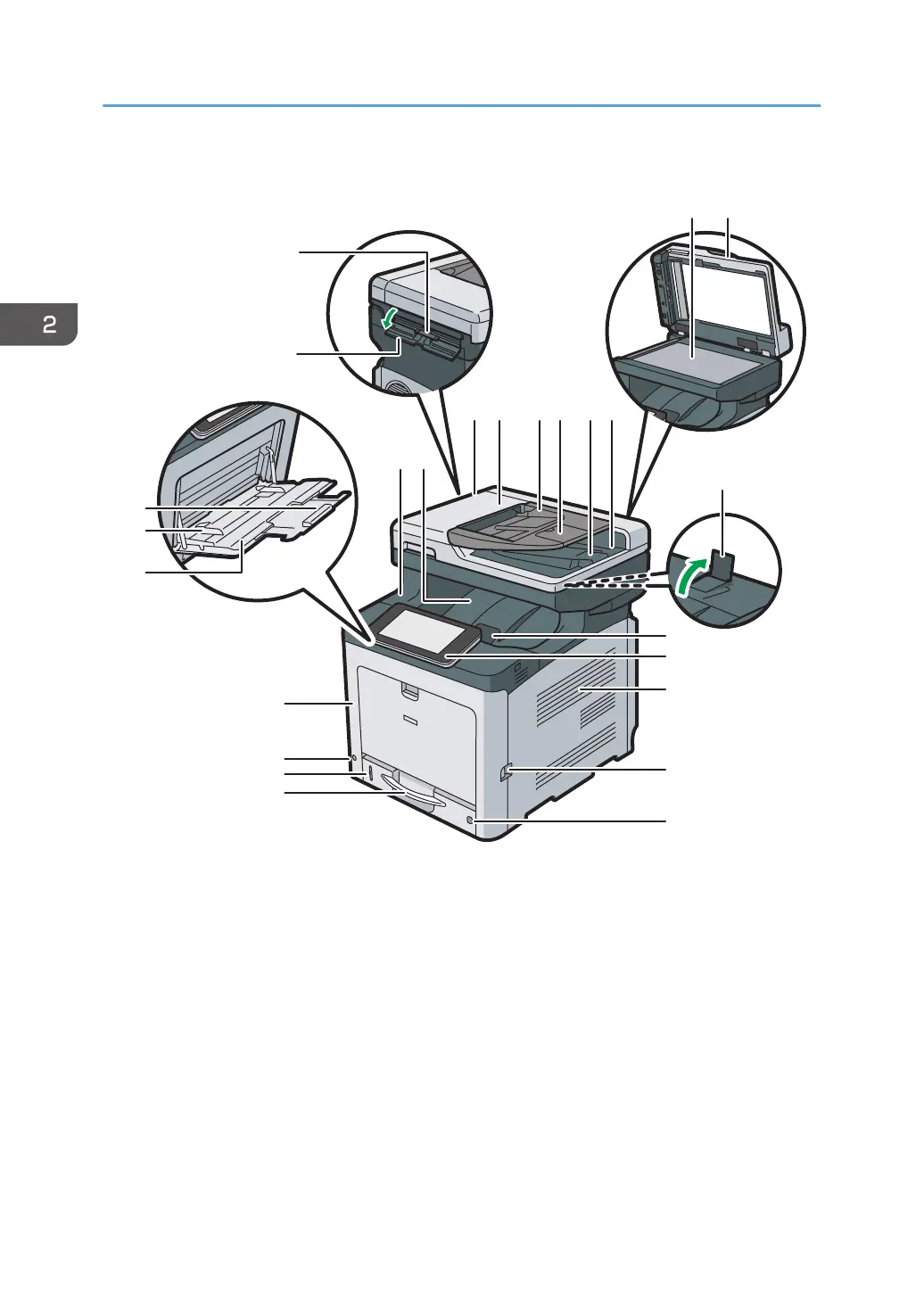

Exterior: Front view
DUP802
10
12
17
16
15
18
13
14
11
12 34
22 23
65
78
9
21
19
24
20
25
1. ADF
Lower the ADF over originals placed on the exposure glass.
If you load a stack of originals in the ADF, the ADF will automatically feed the originals one by one.
2. ADF cover
Open this cover to remove originals jammed in the ADF.
3. Input tray for the ADF
Place stacks of originals here.
4. Extender for the ADF tray
Extend this when placing paper longer than A4 in the input tray for ADF.
5. Stop fence for the ADF
Pull out this fence to prevent originals from falling off.
