Rigol MSO8000-BND - To Reset Color; Jitter Analysis; Figure 13.1 Diagram of Eye Measurement Parameters

Wherein,
One: indicates "1" level.
Zero: indicates "0" level.
Eye Width: indicates the width of an eye diagram.
Eye Height: indicates the height of an eye diagram.
Eye Amp: indicates the amplitude of an eye diagram.
Cross: indicates the crossing percentage of an eye diagram.
Q Factor: indicates the Q factor.
The parameters of the eye measurement are shown in
Figure 13.1 .

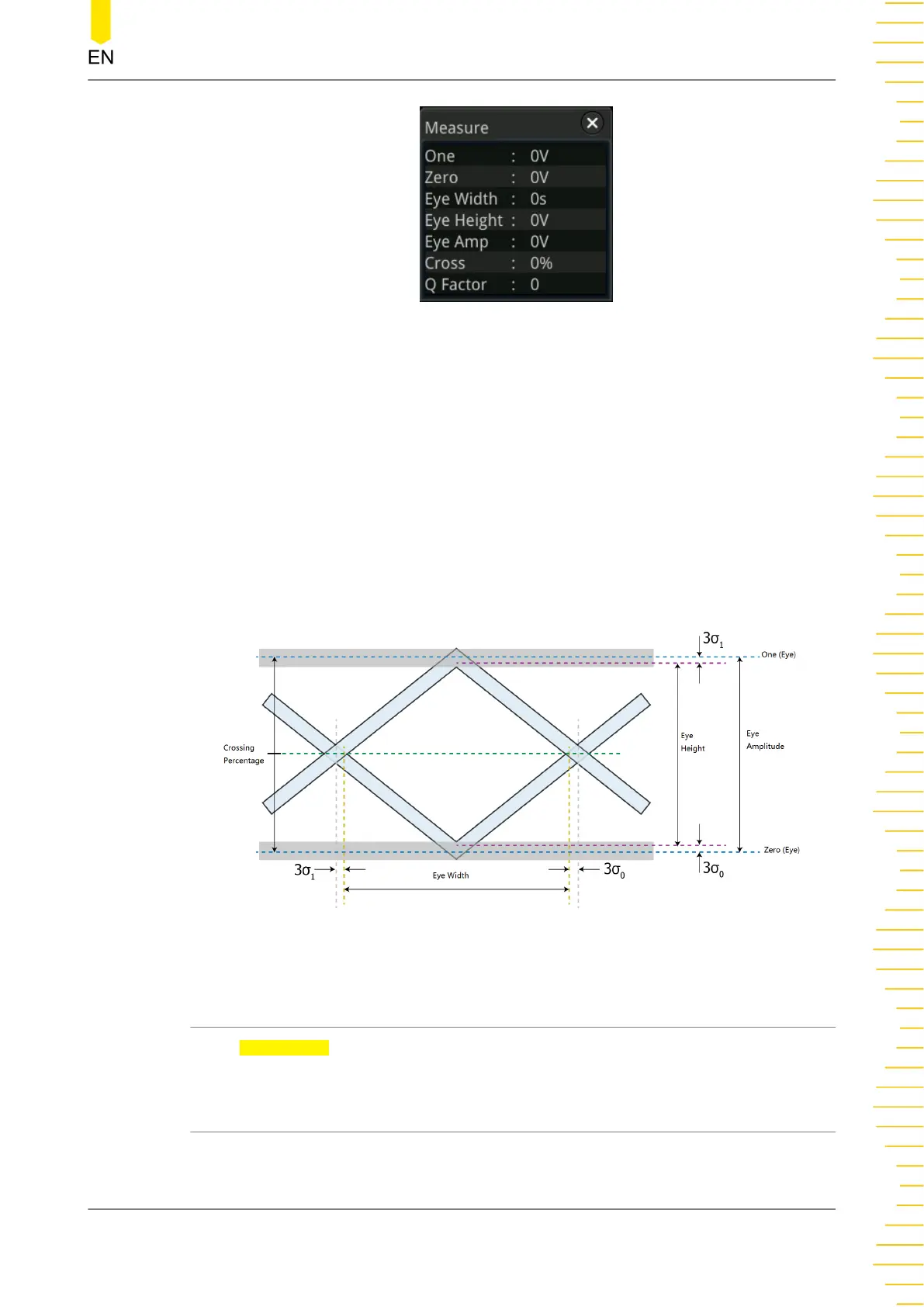

Figure 13.1 Diagram of Eye Measurement Parameters
13.1.6 To Reset Color
Press Reset Color to clear the color level counter.
13.2 Jitter Analysis
The jitter analysis function is mainly used to analyze the integrity of the high-speed
serial signal and measure the variance of a measurement over time. The measurement
Real-time Eye Diagram and Jitter Analysis
(Option)
