The detected ACK is 1
15.4 SPI Decoding (Option)
SPI bus is based on the master— slave configuration and usually consists of chip
select line (CS), clock line (CLK), and data line (SDA). Wherein, the data lines include
the master input/slave output (MISO) data line and master output/slave input (MOSI)
data line. The oscilloscope samples the channel data on the rising or falling edge of
the clock signal (if the source is an analog channel, the oscilloscope will also judge
each data point (logic "1" or logic "0") according to the preset threshold level).

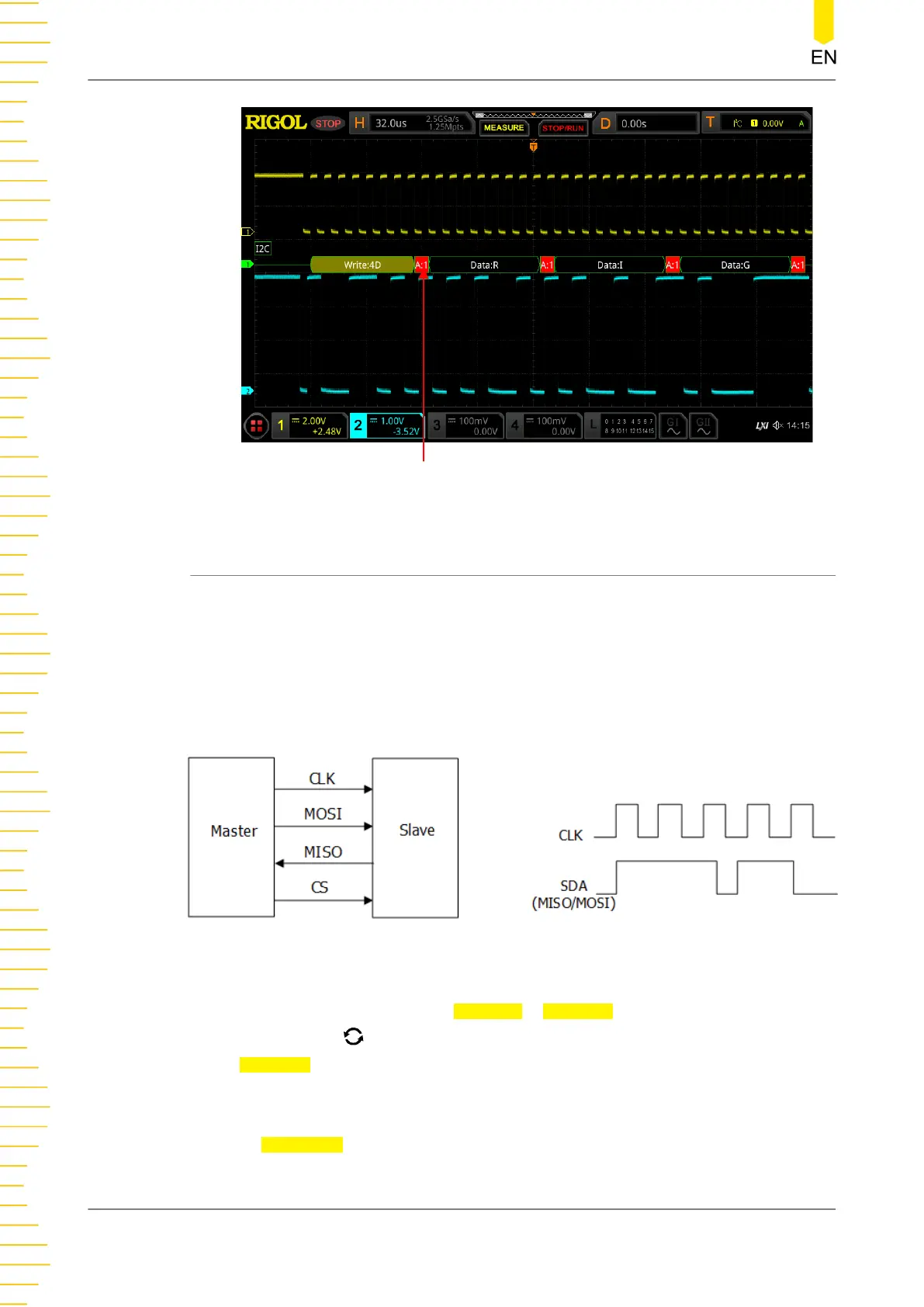

Figure 15.7 SPI Serial Bus
In the decode setting menu, press
Decode1 > Bus Type, then rotate the
multifunction knob to select "SPI". Press down the knob to select it. You can also
press Bus Type continuously or enable the touch screen to select it.
1. Enable or Disable the Bus
Press
Bus Status continuously to enable or disable the decoding function.
2. Quickly Apply SPI Trigger Settings to SPI Decoding
Protocol Decoding
248
