Rigol MSO8000-BND - To Connect the Probe; Figure 4.5 Fuse Replacement

Fuse Holder
Fuse

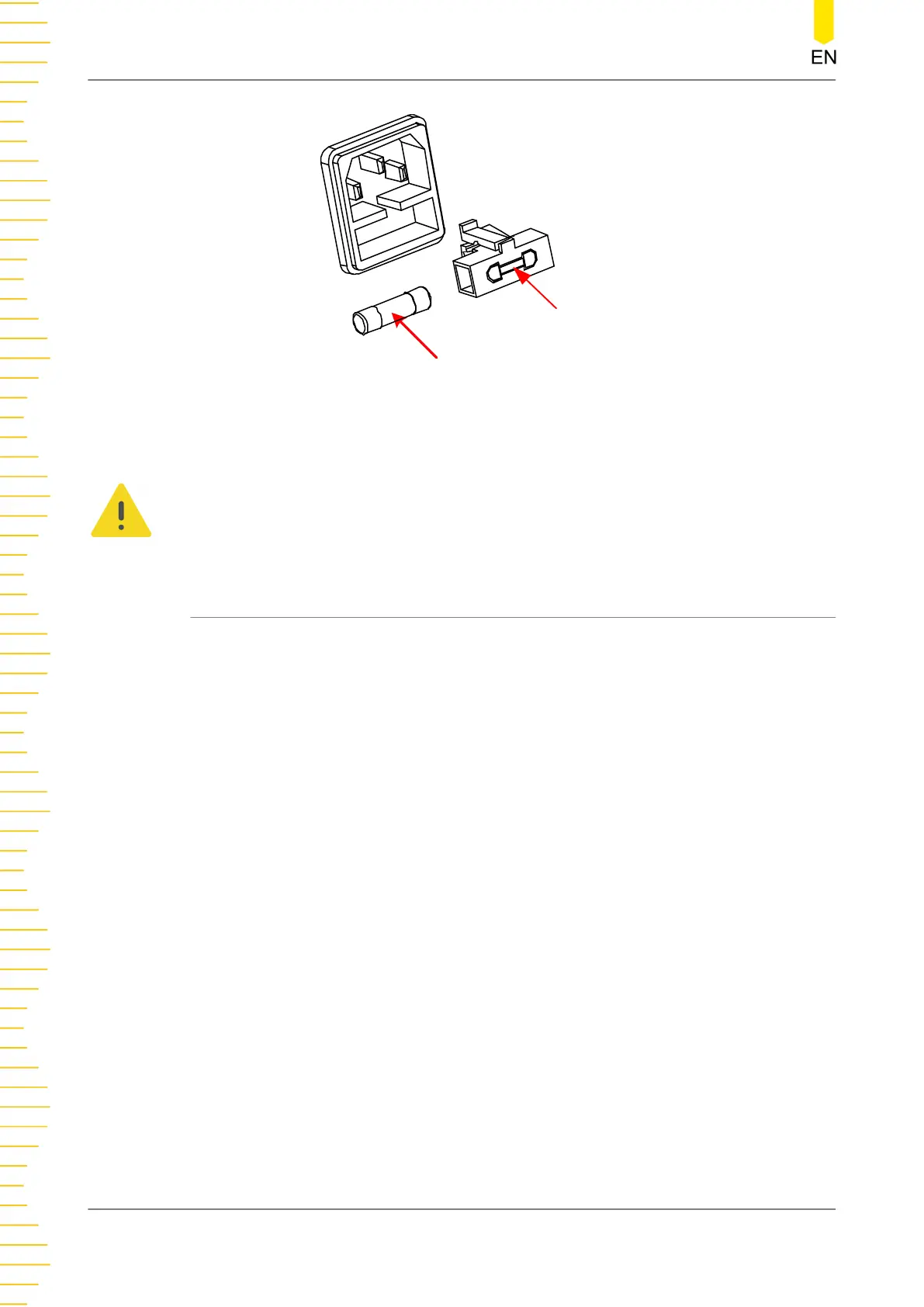

Figure 4.5 Fuse Replacement
WARNING
To avoid electric shock, please ensure that the instrument has been turned off, the power
source has been cut off, and the fuse to be used conforms to the fuse rating.
4.3.5 To Connect the Probe
RIGOL provides the passive probe, the active probe, and the logic probe for the
MSO8000 series. For specific probe models, please refer to MSO8000 Datasheet . For
detailed technical information of the probes, please refer to the corresponding Probe
User Guide.
Connect the passive probe:
1. Connect the BNC terminal of the probe to an analog channel input terminal of the
oscilloscope on the front panel as shown in Figure 4.6 .
2. Connect the ground alligator clip or spring of the probe to the circuit ground
terminal, and then connect the probe tip to the circuit point to be tested.
Quick Start
