Rigol MSO8000-BND - Figure 4.6 Connect the Passive Probe; Figure 4.7 to Connect the Probe Head to the Preamp of the Active Probe

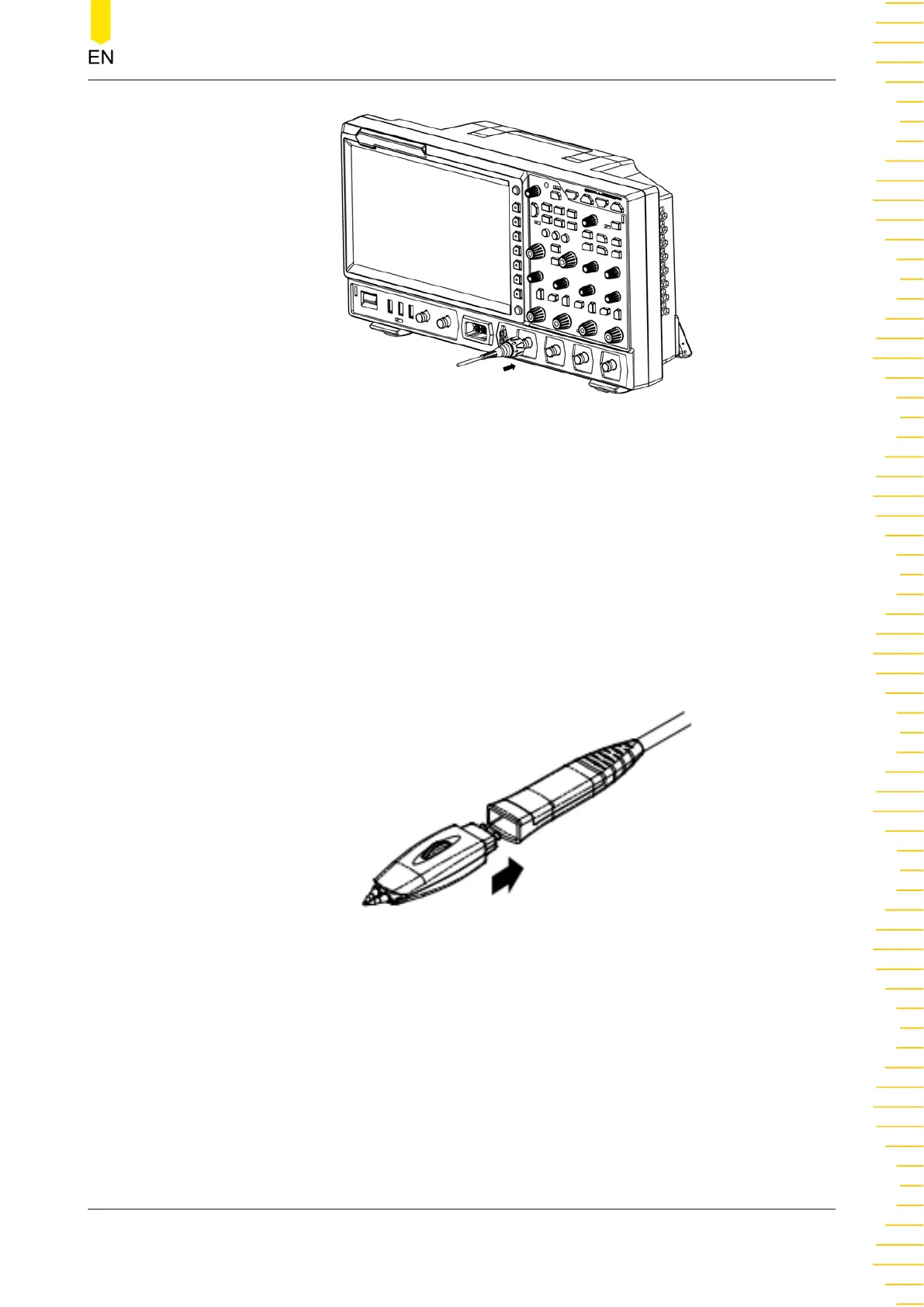

Figure 4.6 Connect the Passive Probe
After you connect the passive probe, check the probe function and probe
compensation adjustment before making measurements. For detailed procedures,
refer to "
Function Inspection " and " Probe Compensation ".
Connect the active probe:
Take RP7150 (active differential probe head) as an example.
1. Connect the probe head to the preamp of the active probe, as shown in
Figure
4.7 .
Figure 4.7 To Connect the Probe Head to the Preamp of the Active Probe
2. Connect the other end of the preamp to an analog channel input terminal of the
oscilloscope on the front panel, as shown in the figure below.
3. Note that you need to push the probe to the due position to lock it firmly.
