4. Measurement Example
Measure the waveforms of CH1 and CH2 with Cursor A and Cursor B, respectively.
Then, expand the waveforms horizontally, and you will find that the cursor will
track the point that has been marked, as shown in the following figure.

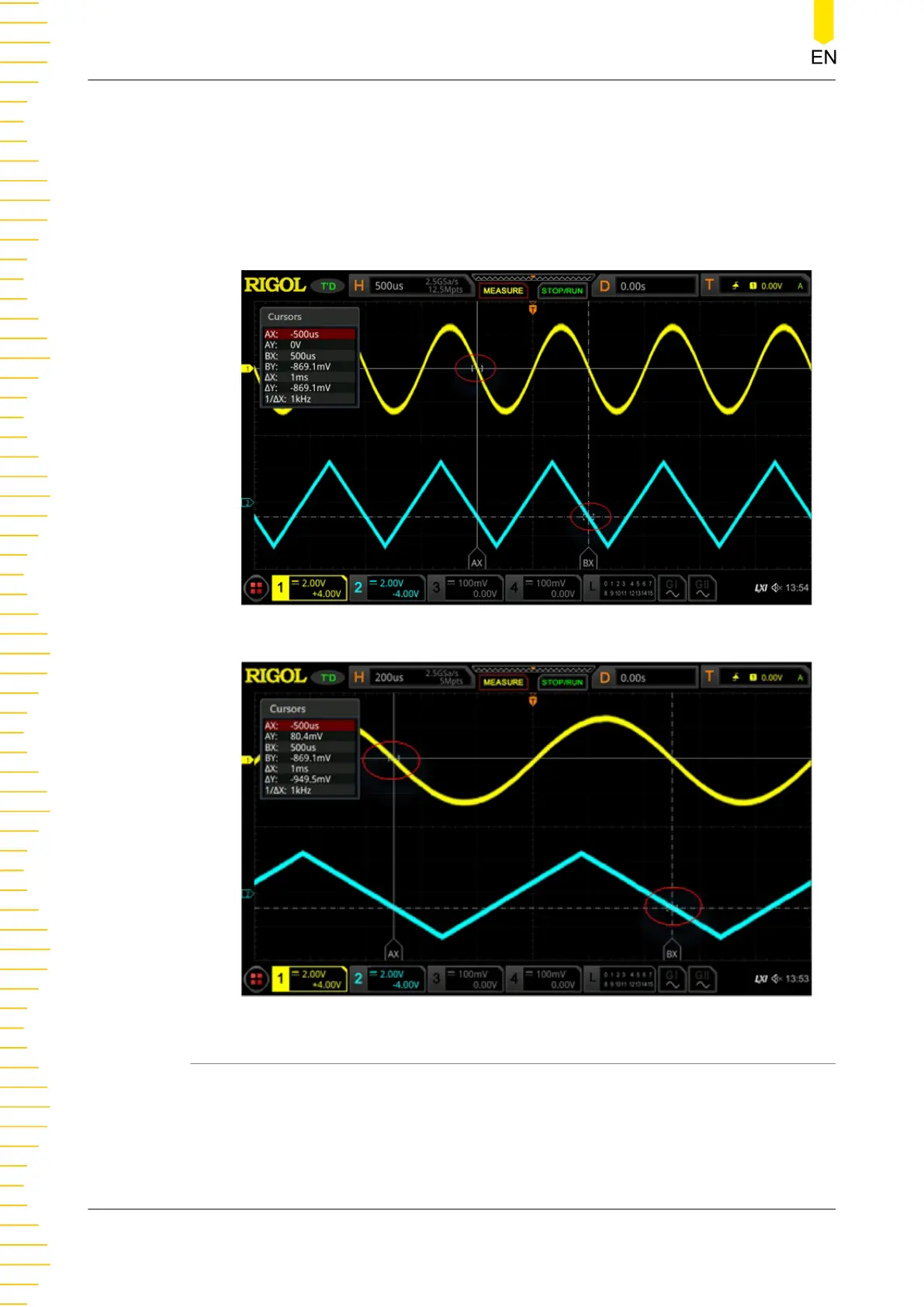

Track Measurement (before Horizontal Expansion):
Track Measurement (after Horizontal Expansion):
9.3.3 XY Mode
XY mode is only available when the horizontal time base mode is "XY" (refer to
"
Timebase Mode
"). In this mode, two pairs of cursors will appear. You can adjust the
cursor positions to measure the X and Y values at the crossing points of the two pairs
of cursors.
Operations and Measurements
196
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
