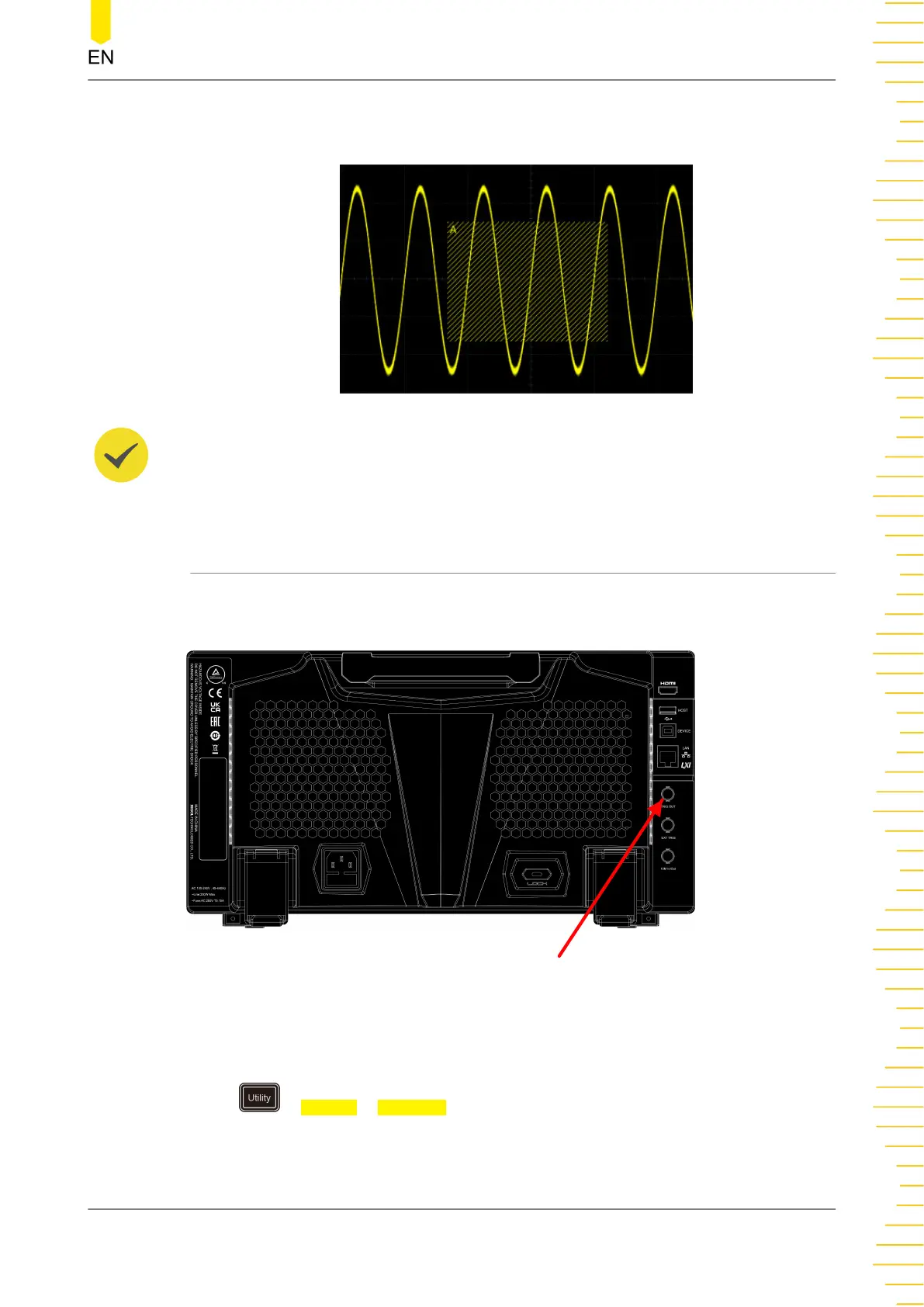

If you enable Zone A, select CH1 as Source A and select "Intersect" as the condition,
the following figure is displayed.
TIP
If you enable both Trigger zone A and Trigger zone B, then perform the "A&&B" operation,
and it will become the final trigger condition.
8.9 Trigger Output Connector
The trigger output connector ([TRIG OUT]) on the rear panel of this oscilloscope
series can output trigger signals determined by the current setting.
Trigger Output Connector
Figure 8.25 Trigger Output Connector
Press > System > AUX Out to select "TrigOut”. A signal which reflects the
current capture rate of the oscilloscope can be output from the [TRIG OUT]
connector each time a trigger is generated by the oscilloscope. If this signal is
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
135
