- Decode: The setting of this menu enables you to quickly view the
corresponding event tables of four decode modules (Decode1, Decode2,
Decode3, and Decode4). Press Decode, then use the multifunction knob
to select a decode module, then press down the knob to select it. You can
also press Decode continuously or enable the touch screen to select it.
6. Address Information in Decoding
For I2C bus, each frame of data starts with the address information (read address
and write address). In the address information, "Read" indicates the read address
( ) and "Write" indicates the write address ( ). You can decide
whether to include or exclude the "R/W" bit for the address information.

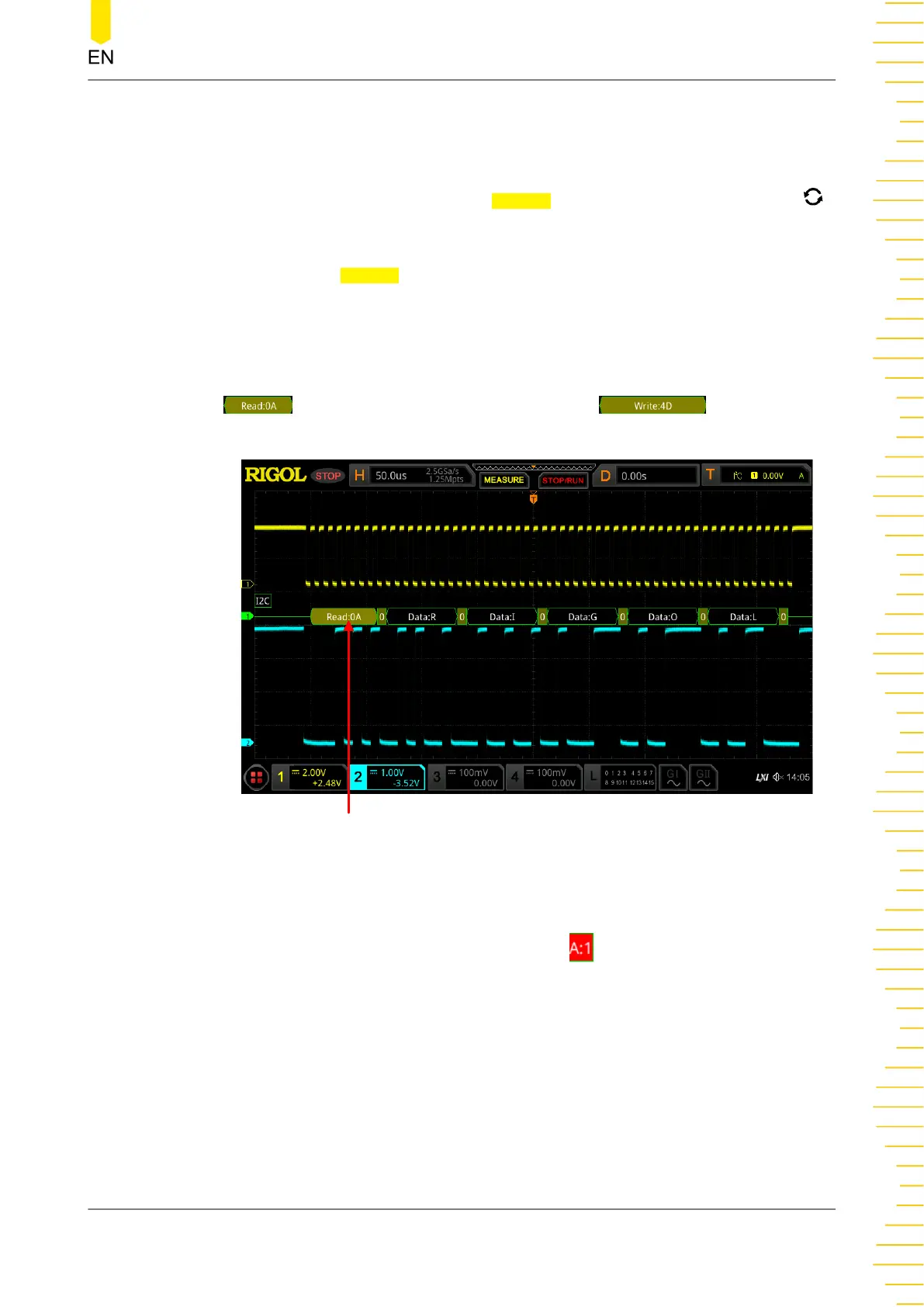

Address Information (Read Address)
7. Error Expressions in Decoding
In I2C decoding, when ACK (acknowledgment) is 1, ACK error occurs. When the
detected ACK is 1, red error report information (the display form is related to
the value of the horizontal time base) is displayed.
Protocol Decoding
