to select a decode module, then press down the knob to select it. You can
also press Decode continuously or enable the touch screen to select it.

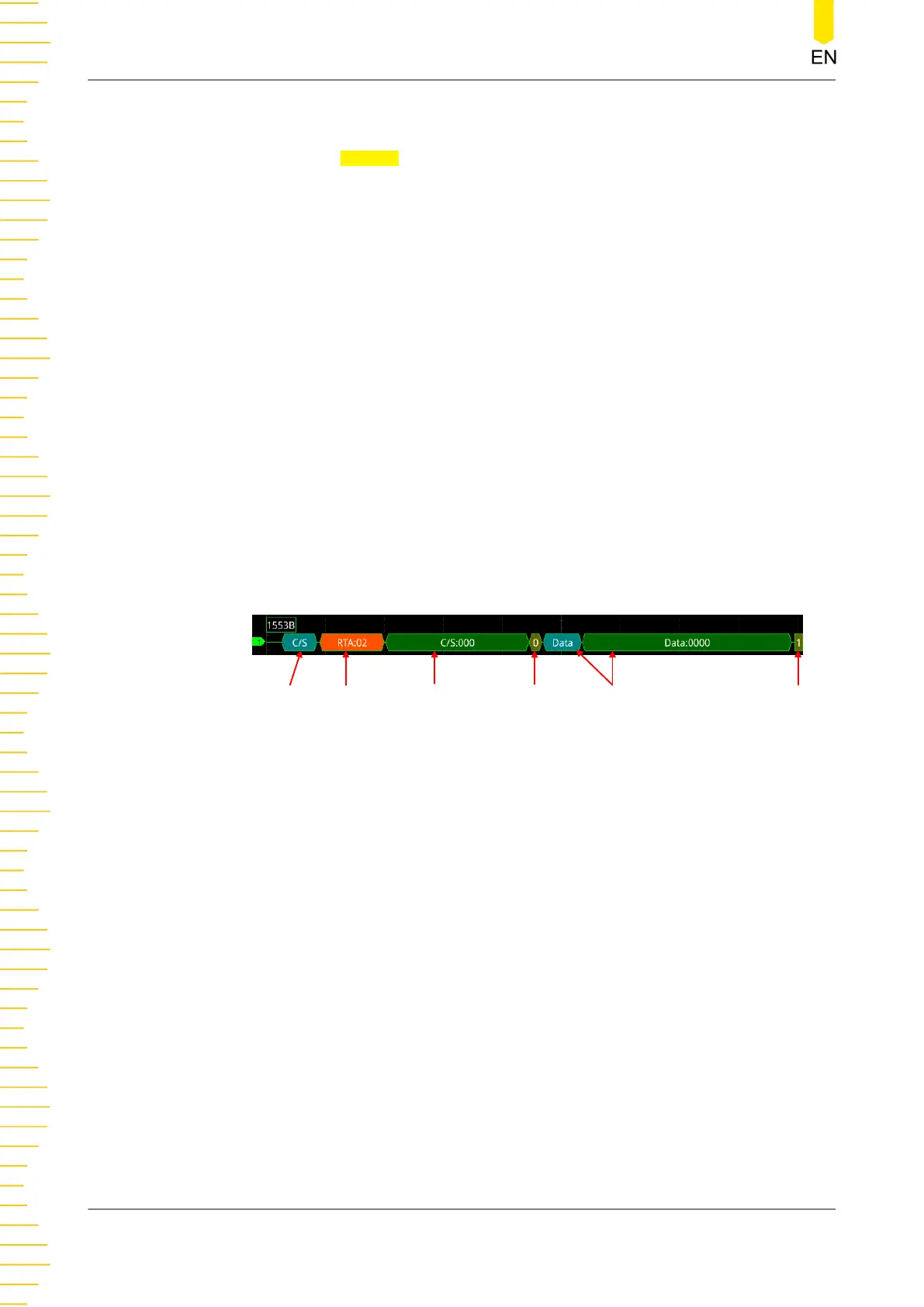

5. Interpret the Decoded 1553B Data
- C/S: command/status word. It is displayed as a blue-green patch.
- RTA: remote terminal address of the command/status word. It is displayed as a
tangerine patch.
- C/S data: the rest data value of the command/status word. Its display format is
the same as that of the bus data (Hex, Dec, Bin, or ASCII), displayed as a green
patch.
- Parity bit: displayed as a yellow-green patch; when errors occur, displayed as a
red patch.
- Data word data: data of the data word. Its display format is the same as that of
the bus data (Hex, Dec, Bin, or ASCII), displayed as a green patch.
C/S Word
Parity Bit
Parity Bit
Data Word
RTA C/S Data
Protocol Decoding
