Rockwell Automation Publication 5094-UM001C-EN-P - April 2019 117
Configure and Replace Safety Modules Chapter 7

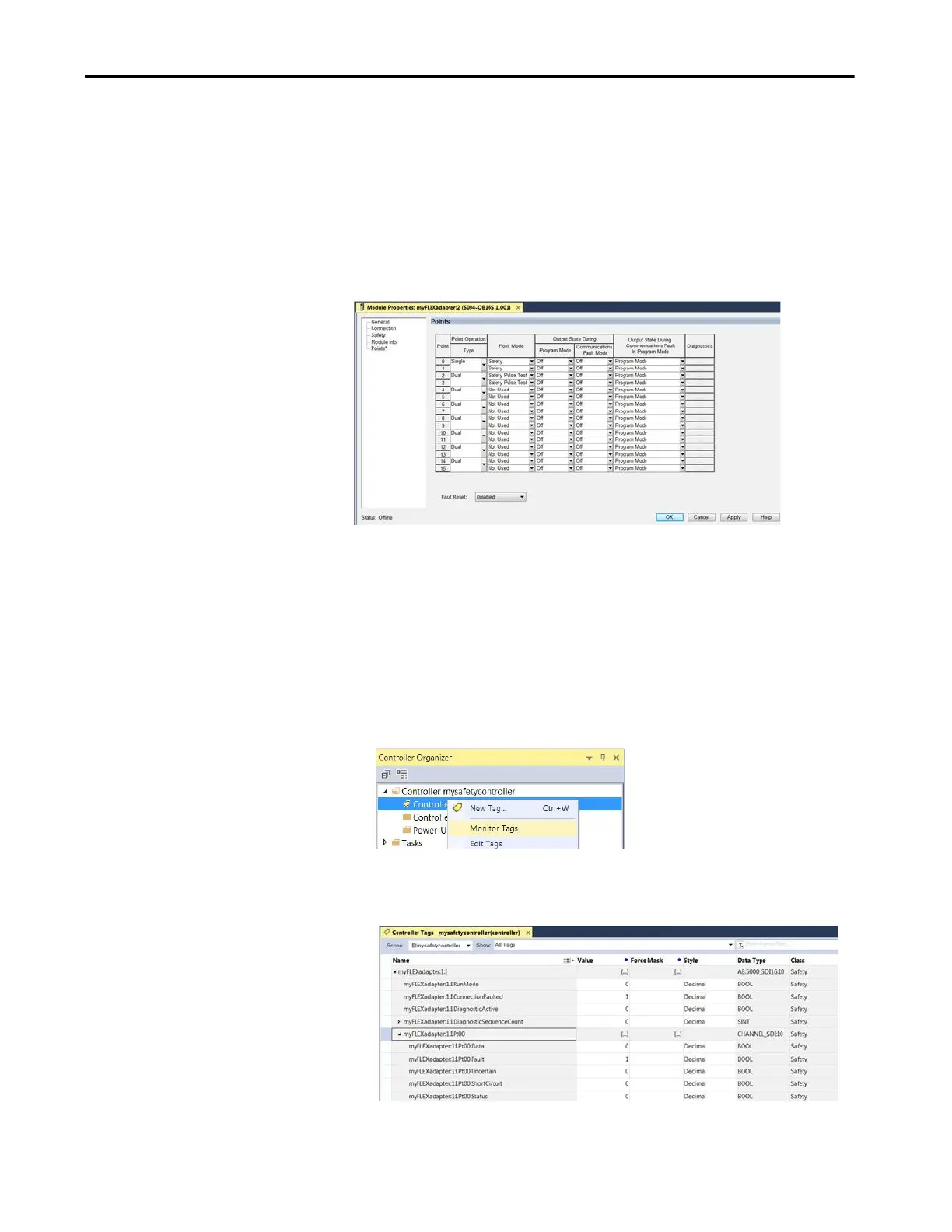

Edit the 5094-OB16S or
5094-OB16SXT Module
Configuration Category
The 5094-OB16S or 5094-OB16SXT module uses the Output Configuration
category.
The Points Configuration category is only available if you choose This
Controller for the Configured By parameter on the Module Definition
dialog box.
You must configure each point to use it in a safety application. The outputs are
disabled by default.
View the Module Tags
When you create a module, the Logix Designer application creates a set of tags
that you can view in the Tag Editor. Each configured feature on your module has
a distinct tag that is available for use in the controller program logic.
Complete the following steps to access the tags for a module.
1. In the Controller Organizer, right-click Controller Tags and choose
Monitor Tags.
The Controller Tags dialog box appears with data.
2. To view the tags, click the triangle symbols.
