Chapter 5 Safety I/O Module Features
Single-channel Mode
When the output channel is in the On state and without any faults, the safety
outputs turned on. The status is normal. If a fault is detected on the output
channel, the safety output data and individual safety output status turn off.
For information about how using single-channel mode with a 5094-OB16S or
5094-OB16SXT module affects the safety application suitability level, see
Table 15 on page 79
.

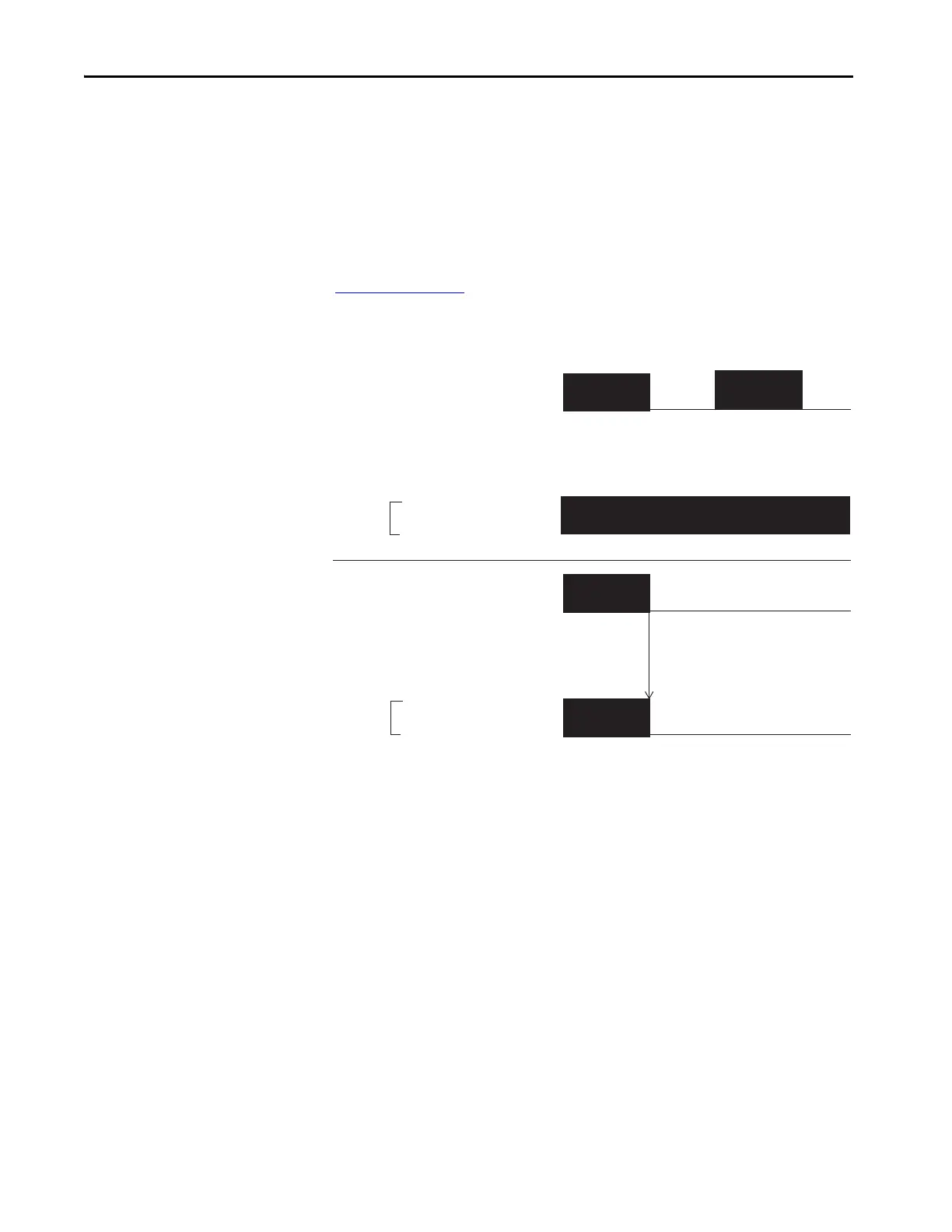

Figure 13 - 5094-OB16S/5094-OB16SXT Single-channel Mode (Not to Scale)
Normal Operation
Fault Detection
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Safety Output 0
Status
Output 0
Safety Network Data
Sent to the Controller
Safety Output 0
Status
Output 0
Safety Network Data
Sent to the Controller
Error Detected
