Chapter 7 Configure and Replace Safety Modules
Reset to Out-of-Box Configuration
When the Logix Designer application is online, the Safety tab of the Module
Properties dialog box displays the current configuration ownership. When the
opened project owns the configuration, Local is displayed.
When a second device owns the configuration, Remote is displayed, along with
the SNN, and node address or slot number of the configuration owner.
Communication error is displayed if the module read fails.
If the connection is Local, you must inhibit the module connection before you
reset ownership.
To inhibit the module, follow these steps.
1. Right-click the module and choose Properties.
2. On the Connection tab, click Inhibit module.
3. Click Apply and then OK.
Follow these steps to reset the module to its out-of-box configuration
when online.

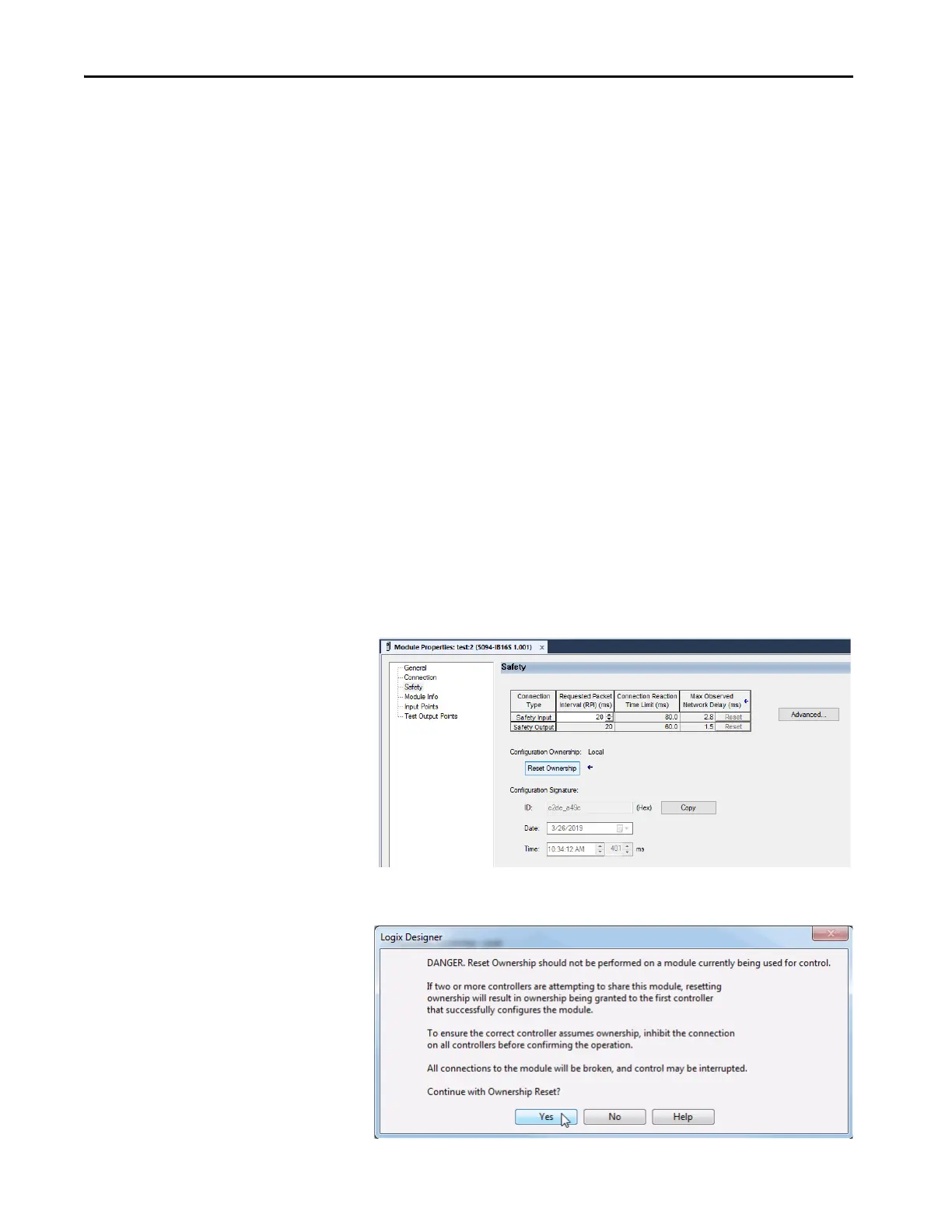

1. Right-click the module and choose Properties.
2. On the Safety tab, click Reset Ownership.
3. When a dialog box appears asking if you want to continue with the reset,
read it and click Yes.
