Appendix B Module Tag Definitions
Tag Name Conventions
The module tag names use defined naming conventions. The conventions are as
follows:
Example tag name = Adapter1:I.Pt00.Data
• Adapter = name of the FLEX 5000 EtherNet/IP adapter in the
FLEX 5000 I/O system
•1 = slot number
•I = tag type
The possible FLEX 5000 I/O tag types are C (configuration), EI (event
input), EO (event output), I (input), and O (output)
• Pt00 = module point number
• Data = tag function
In this case, Data represents the input data that is returned to the owner-
controller.

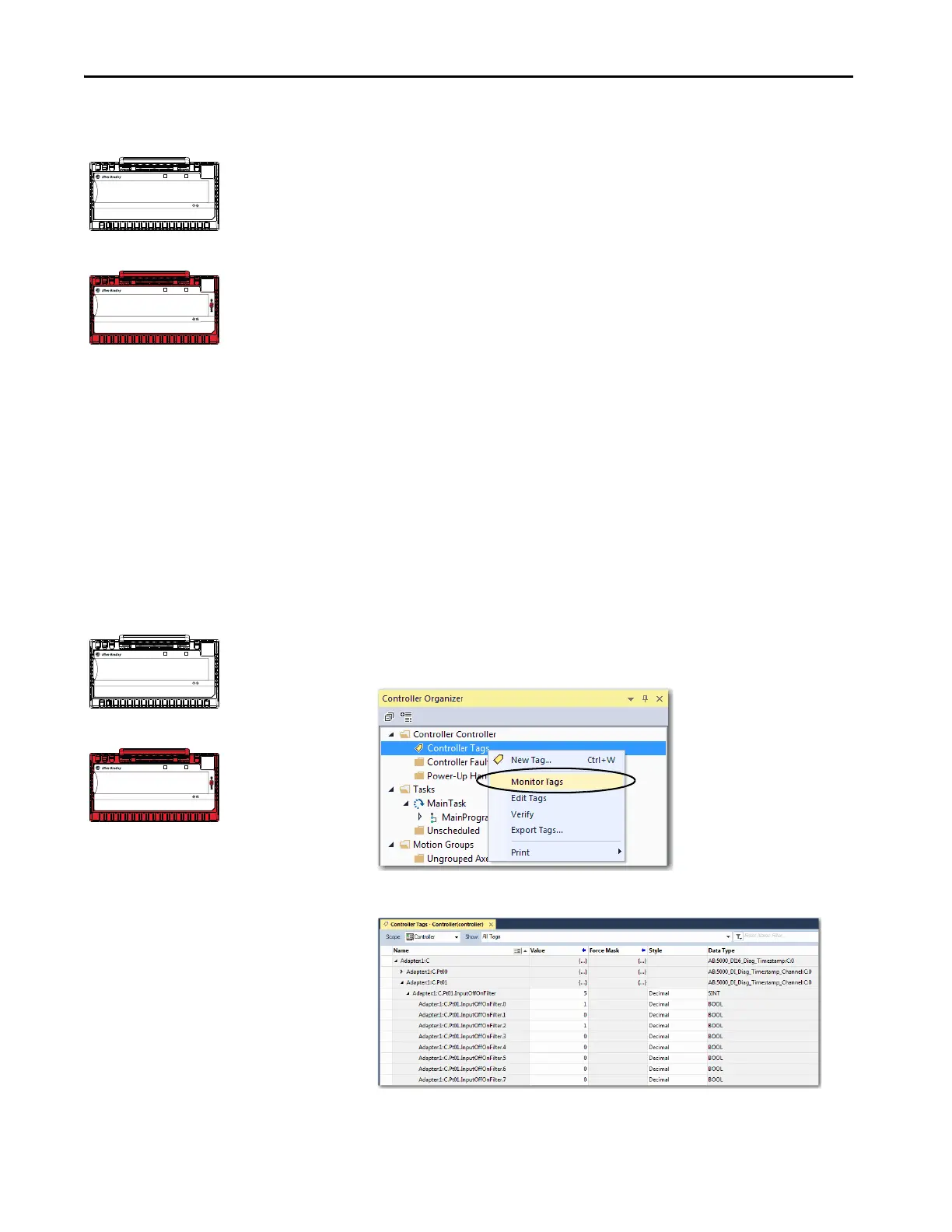

Access the Tags
You view tags from the Tag Editor.
1. Open your Logix Designer application project.
2. Right-click Controller Tags and choose Monitor Tags.
3. Open the tags as necessary to view specific tags.
