132 Rockwell Automation Publication 5094-UM001C-EN-P - April 2019
Appendix A Troubleshoot Your Module
Status and Fault Information in Module Properties Categories
The Module Properties section in the Logix Designer application includes a
series of categories. The numbers and types of categories varies by module type.
Each category includes options to configure the module or monitor the status of
the module. The following are ways to monitor the state of a module for faults:
• Module Status on General Category
• Module Fault Descriptions on Connection Category
• Module Fault Descriptions on Module Info Category
• Module Diagnostics Dialog Box
• Point Diagnostics
Module Status on General Category
As shown in Figure 22, the status of a module is indicated on the General
category of the Modules Properties.

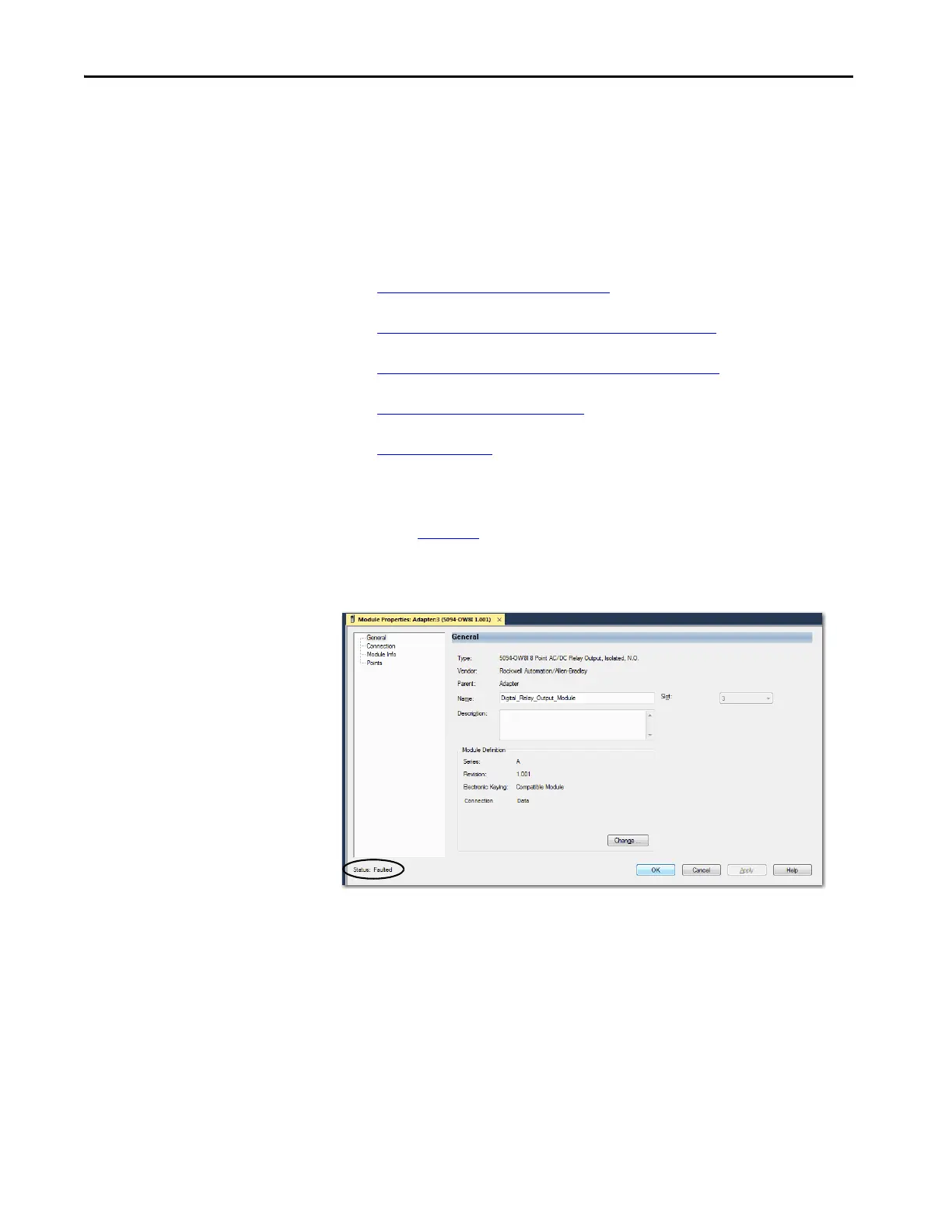

Figure 22 - Fault Message in Status Line
