Troubleshoot Your Module Appendix A
Point Diagnostics
You can use diagnostics in a Logix Designer project to monitor module and/or
point operating conditions and to troubleshoot issues that affect a module and/
or point. You can use diagnostics only when the project is online.
Point diagnostics provide information on an individual point basis. For example,
you can check individual points on a 5094-IB16S or 5094-IB16SXT safety input
module for the presence of a Short Circuit condition.
Remember the following:
• Not all FLEX 5000 I/O digital modules provide point diagnostics.
• The point diagnostics that are available vary by module type and
functionality.
• There are some differences between modules, but most commonly, the
Module Properties dialog box category from which you can access point
diagnostics is Points.

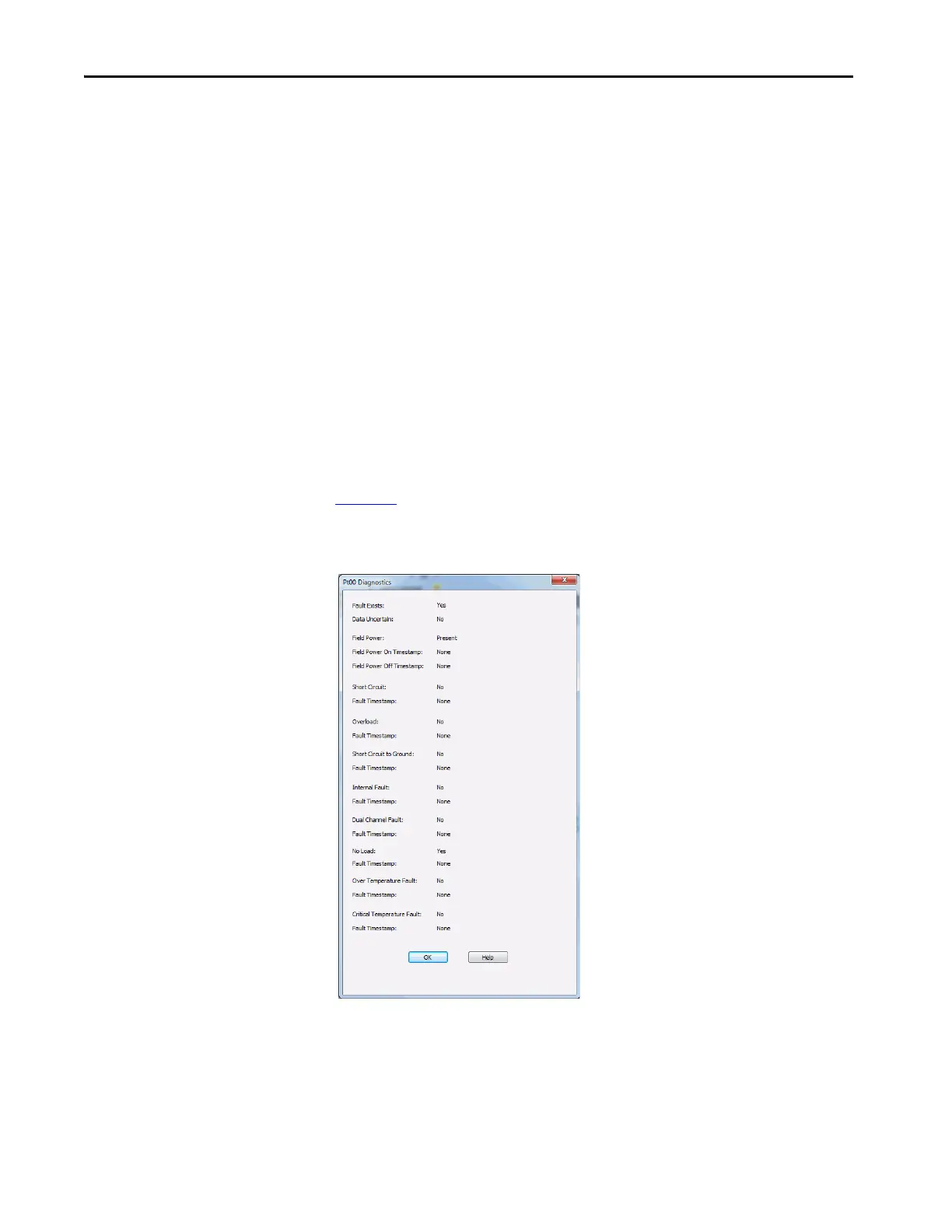

Figure 26
shows how to access output point diagnostics on the 5094-OB16S
module and the diagnostics dialog box.
Figure 26 - Point Diagnostics
