Appendix A Troubleshoot Your Module
FLEX 5000 Safety Output
Modules Status Indicators

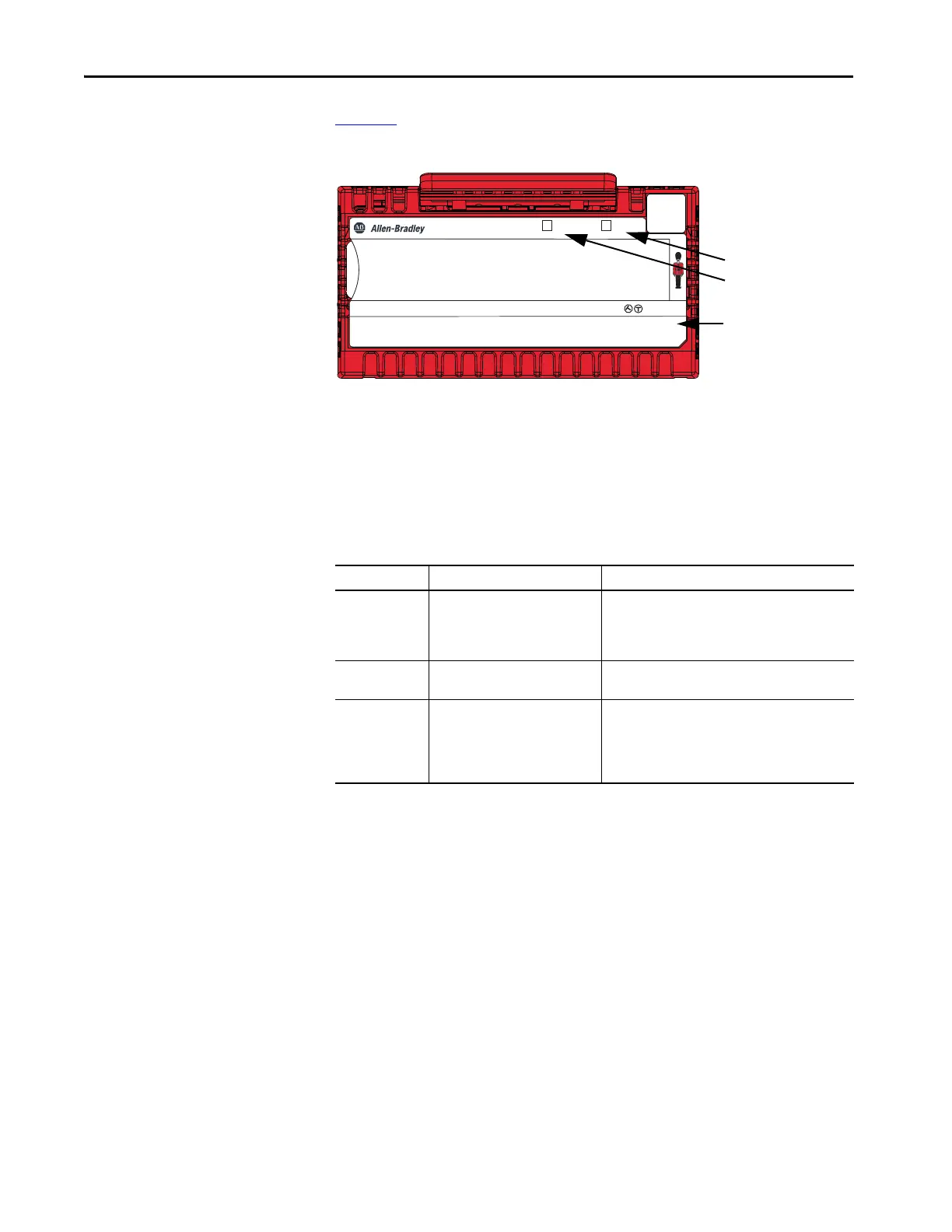

Figure 20 shows the status indicators on FLEX 5000 safety output modules.
Figure 20 - FLEX 5000 Safety Output Modules
Table 26 - I/O Status Indicators - FLEX 5000 Safety Output Modules
Indicator State Description Recommended Action
Off One of the following:
• The output point is Off.
• There is no backplane power.
One of the following:
• Confirm that the output point is configured properly.
• Confirm that there is backplane power supplied
through the FLEX 5000 EtherNet/IP adapter.
Steady yellow The output point is operating
normally.
None
Flashing red One of the following:
• A No Load or Short Circuit
condition is detected.
• A Field Power Loss condition
exists.
One of the following:
• Locate and correct the cause of No Load or Short
Circuit condition.
• Locate and correct the cause of Field Power Loss
condition.
STATUS
POWER
5094-OB16S
5
1
TB3I
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
SAFETY DIGITAL 16 OUTPUT 24 VDC
Module status indicator
SA power status indicator
I/O status indicators
Output Point 0 (O00)
Output Point 1 (O01)
Output Point 2 (O02)
Output Point 3 (O03)
Output Point 4 (O04)
Output Point 5 (O05)
Output Point 6 (O06)
Output Point 7 (O07)
Output Point 8 (O08)
Output Point 9 (O09)
Output Point 10 (O10)
Output Point 11 (O11)
Output Point 12 (O12)
Output Point 13 (O13)
Output Point 14 (O14)
Output Point 15 (O15)
