Rockwell Automation Publication 5094-UM001C-EN-P - April 2019 55
Input Module Features Chapter 3

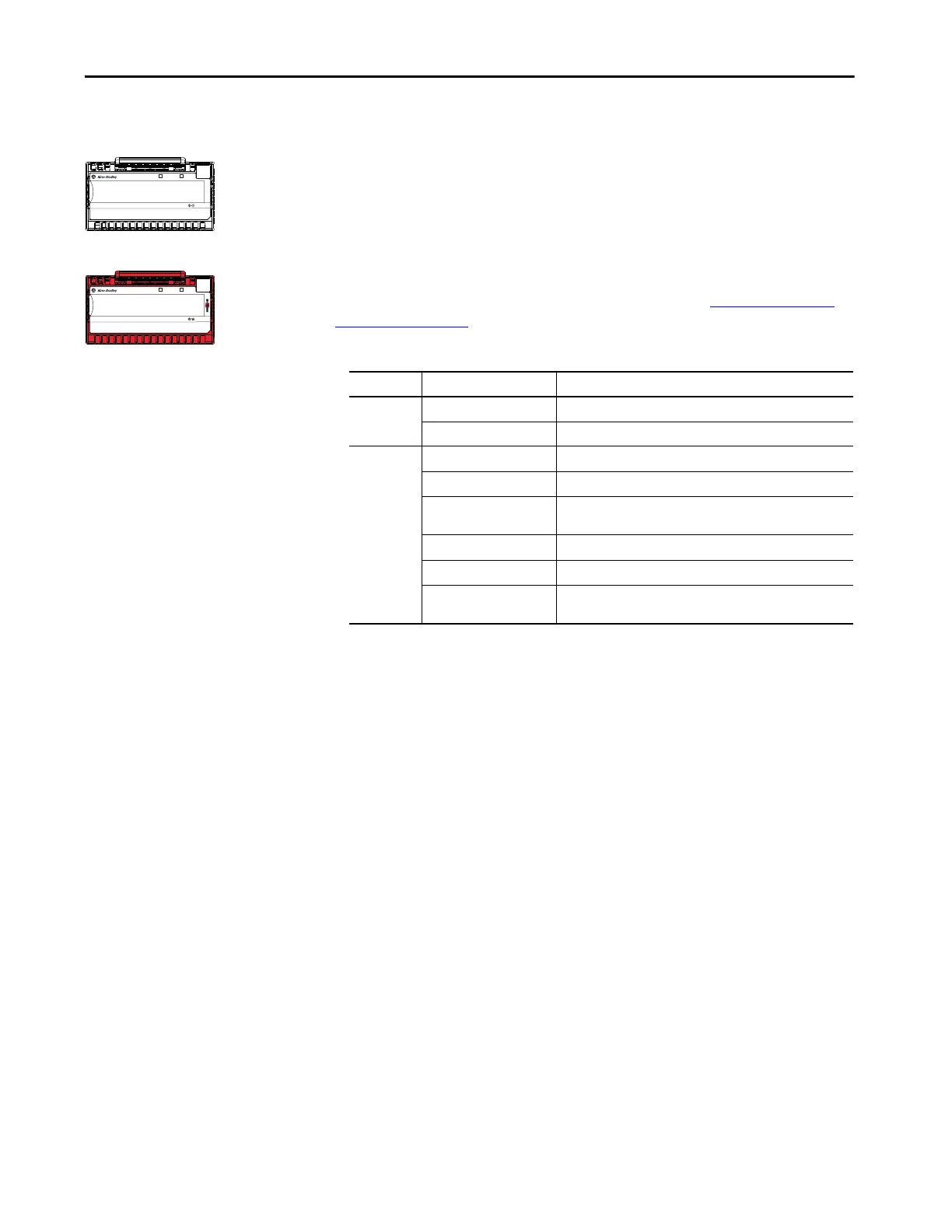

Fault and Status Reporting
The digital input modules multicast fault and status data with point data to the
owner and listening controllers. The data is returned via modules that you can
monitor in your Logix Designer application.
With some exceptions, the FLEX 5000 digital input modules provide the fault
and data status in a point-centric format. The tag names in the following table
that include Ptxx represent point-centric data. The xx represents the point
number.
For more information on fault reporting, see Appendix A, Troubleshoot Your
Module on page 123.
STATUS
POWER
SAFETY DIGITAL 16 INPUT 24 VDC
5094-IB16S
5
5
TB3I
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Safety Modules
Standard Modules
Table 9 - FLEX 5000 Digital Input Module - Fault and Data Status
Data Type Tag Name
(1)
(1) Not all tag names apply to all FLEX 5000 digital input modules.
Triggering Event That Sets the Tag
Fault
ConnectionFaulted
(2)
(2) This tag provides module-wide data and affects all points simultaneously.
The owner-controller loses its connection to the module.
Ptxx.Fault The point data quality is bad.
Status
RunMode The module is in Run Mode.
DiagnosticActive Indicates if any diagnostics are active.
DiagnosticSequenceCount A counter that increments when a diagnostic condition occurs or
goes away. The counter is a rolling counter that skips 0 on rollovers.
Ptxx.Data The point input status is one or zero.
Ptxx.Uncertain The point data can be imperfect.
Uncertain
(2)
The module is operating outside its designed operating range if
data is under manual or override control.
To Next Page
