Configure the Standard Module Chapter 6
Edit 5094-IB16 Module
Configuration Categories
In addition to the General, Connection, and Module Info categories, the
following categories are available when you configure a 5094-IB16 module:
• Counters Category
• Points Category
• Events Category
• Time Sync Category
Counters Category
The Counters category is available only if you choose a value for Counters in the
Module Definition dialog box.

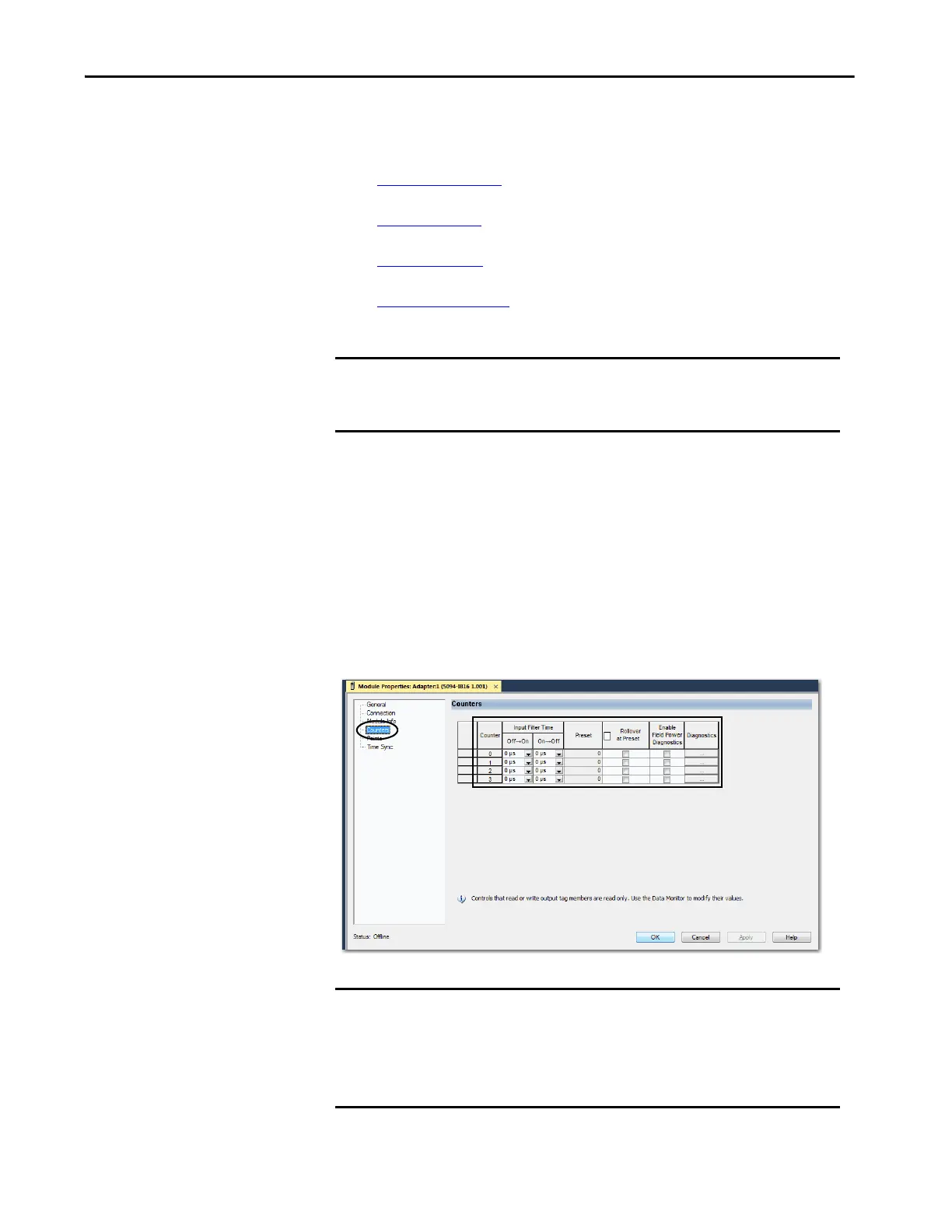

The Counters category shows the configuration options available for each
counter. Based on your Input Filter Time selections, the Input Filter Time
Off→On and On→Off times change. You can also configure the counter Preset
value and enable Rollover at Preset.
IMPORTANT If you use the Listen Only Data or Listen Only Data with Events connection
type, the Points Category, Counters Category, and Events Category do not
appear.
IMPORTANT The total number of Counters subtracts from the available number of Points.
For example, if you configure a 5094-IB16 module to use four counters, the
first four terminals are not available to use as points.
The number of points available on the module in this case is 12. That is,
points 4…15.
To Next Page
